Technical Data (Steering)
>>
Steering Technical Data
Steering Technical Data

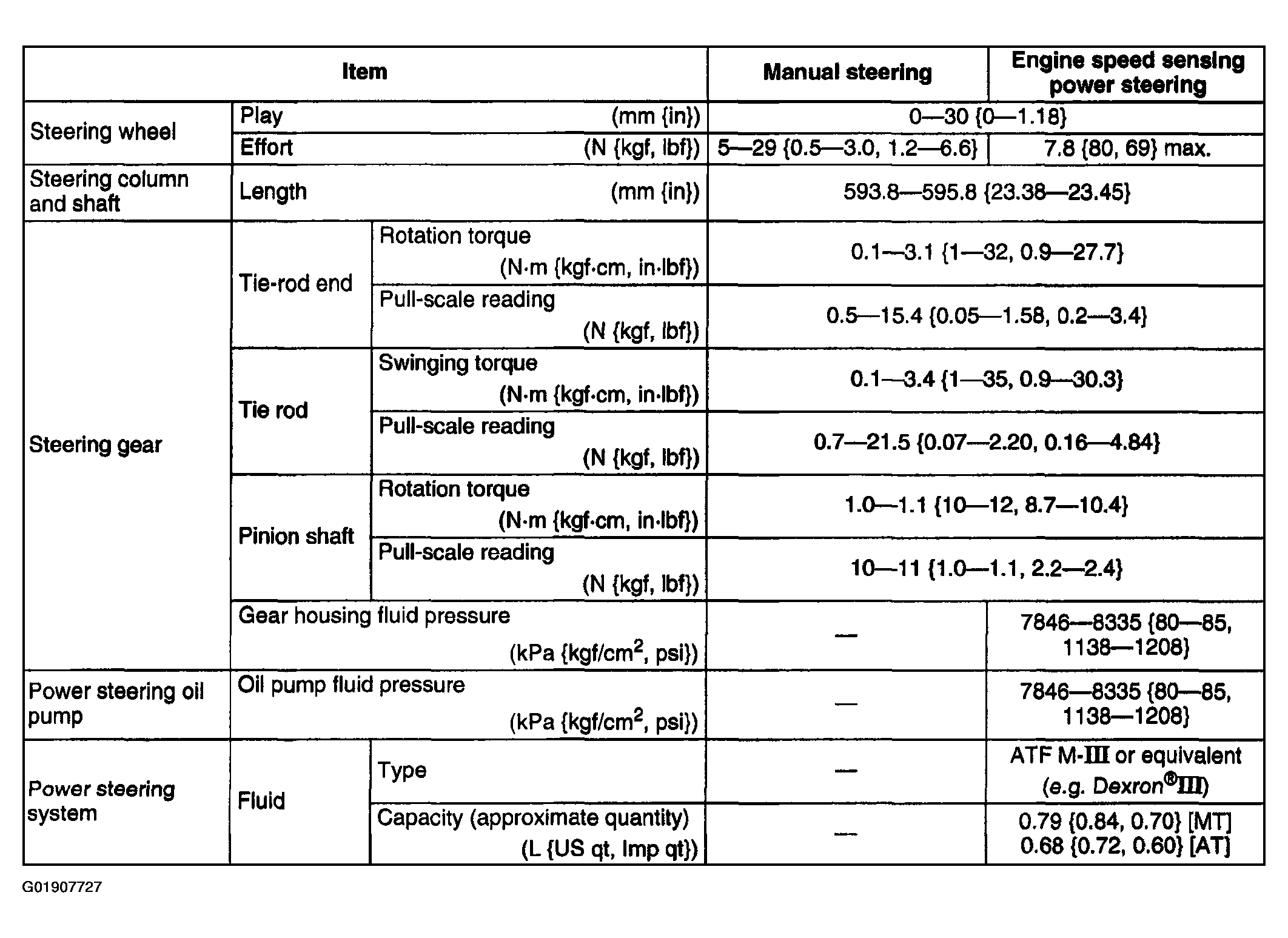

Fig 1: Steering Technical Data Table
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
