Seat Belt Removal/Installation

CAUTION:
  • The ELR has a spring that will unwind if the retractor's cover is removed. The spring cannot be rewound by hand. If this occurs, the ELR will not work properly. Therefore, do not disassemble the retractor.
  1. Disconnect the negative battery cable.
  2. Remove the quarter trim. (See QUARTER TRIM REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.
    Fig 1: Seat Belt Component Table
    G01907953Courtesy of MAZDA MOTORS CORP.

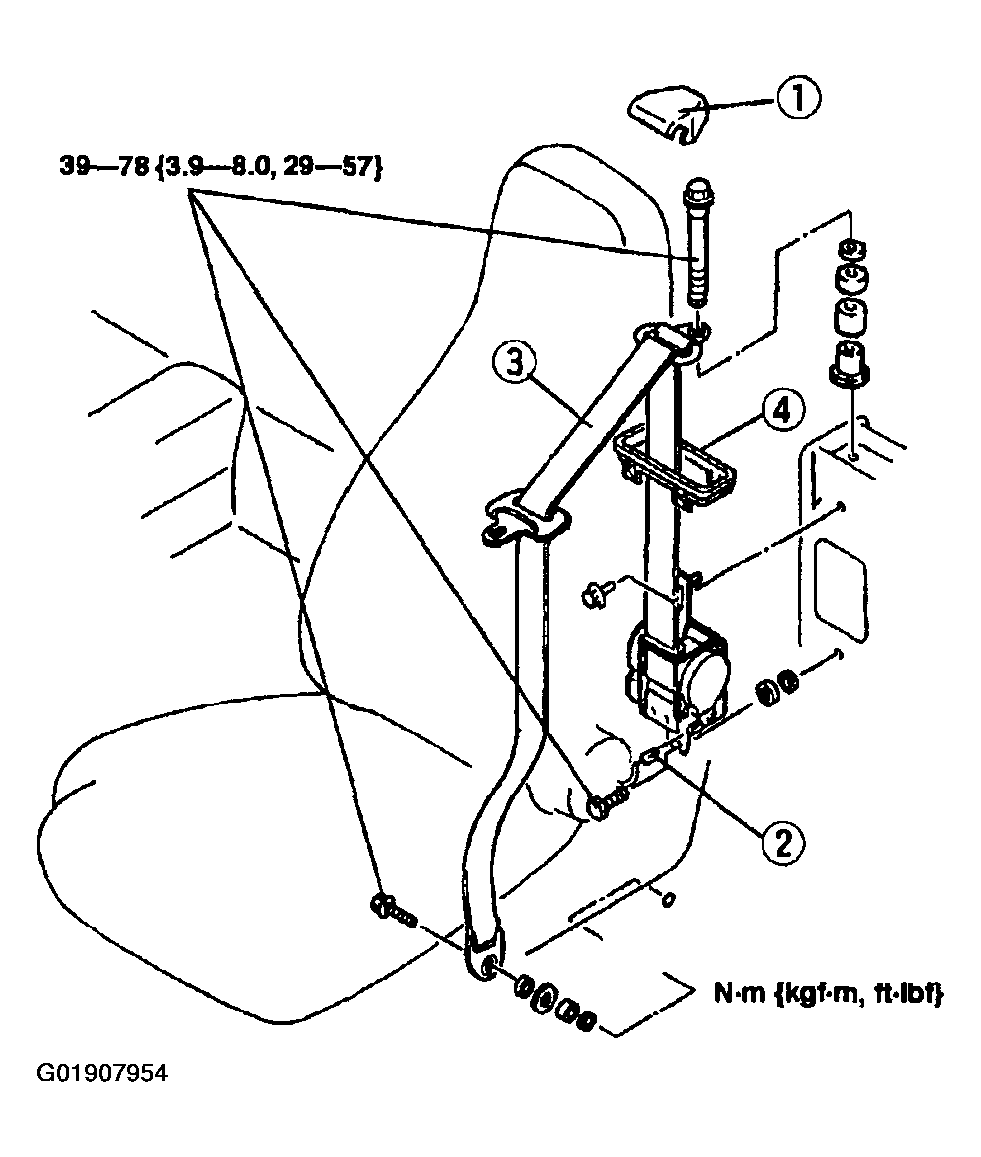

    Fig 2: Locating Seat Belt Component
    G01907954Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
