To Determine if The Switch is Functioning

  1. Remove the glove compartment.
  2. Start the engine.
  3. Turn the A/C switch on.
  4. Turn the fan switch on.
  5. Connect the positive (+) and negative (-) probes of the voltmeter to terminal A and terminal B of the thermoswitch respectively. (The wiring harness connector must be connected to the thermoswitch connector.)
  6. Inspect the voltage as shown below.
    • If not as specified, inspect on/off points of the thermoswitch.

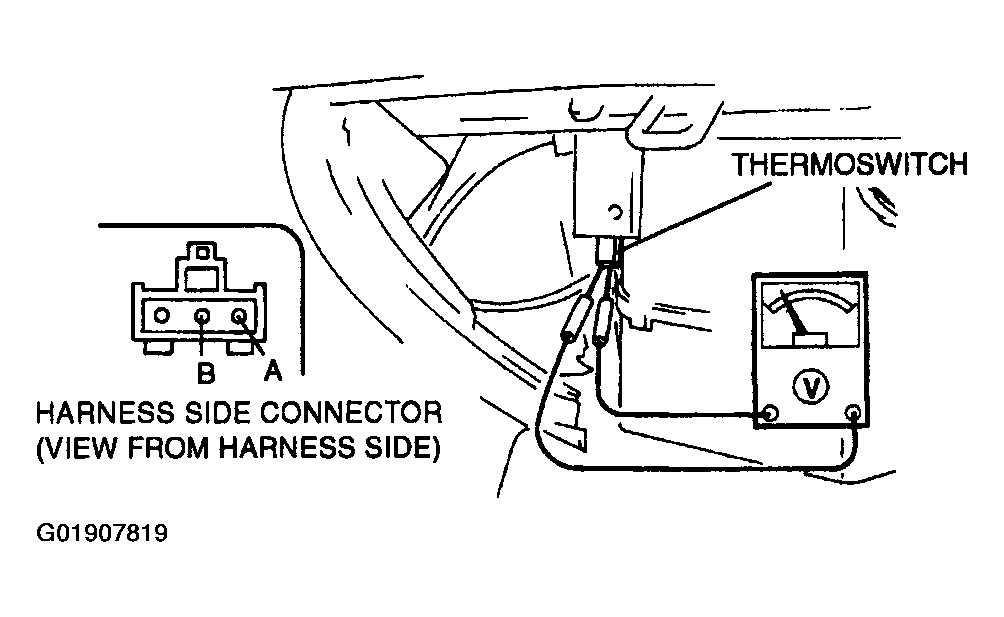

    Fig 1: Inspecting Thermoswitch Operation (1 Of 2)
    G01907819Courtesy of MAZDA MOTORS CORP.

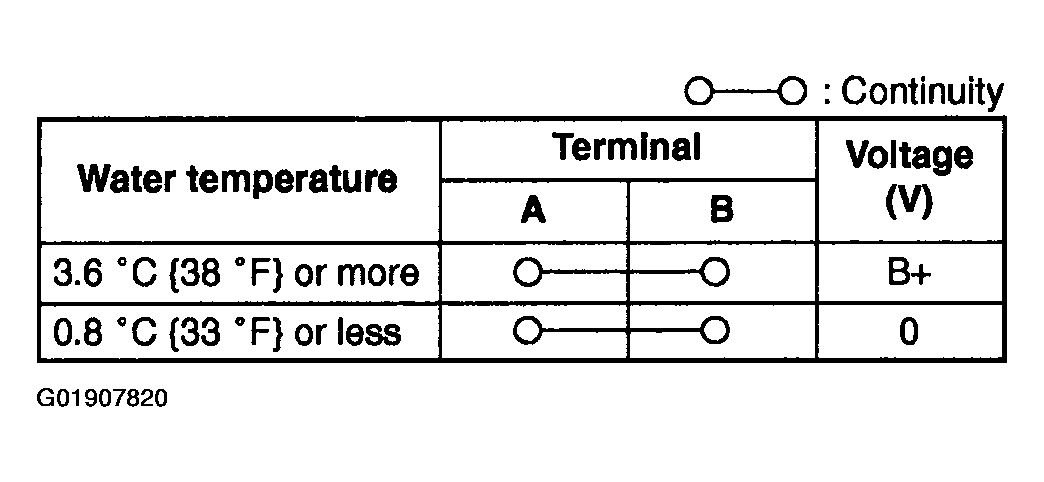

    Fig 2: Inspecting Thermoswitch Operation (2 Of 2)
    G01907820Courtesy of MAZDA MOTORS CORP.
