Resistor Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the resistor.

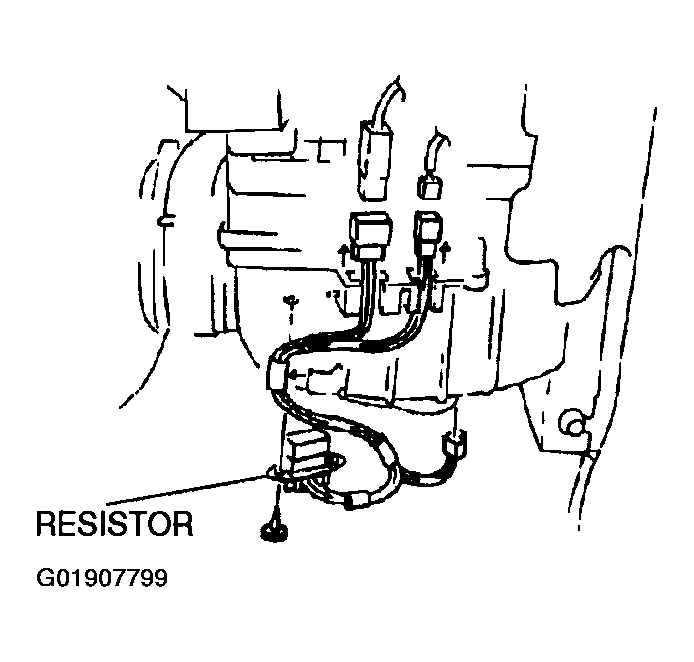

    Fig 1: Removing/Installing Resistor
    G01907799Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
