Resistor Inspection

  1. Disconnect the resistor connectors.
  2. Inspect for continuity between the resistor terminals using an ohmmeter.
    • If not as specified, replace the resistor.

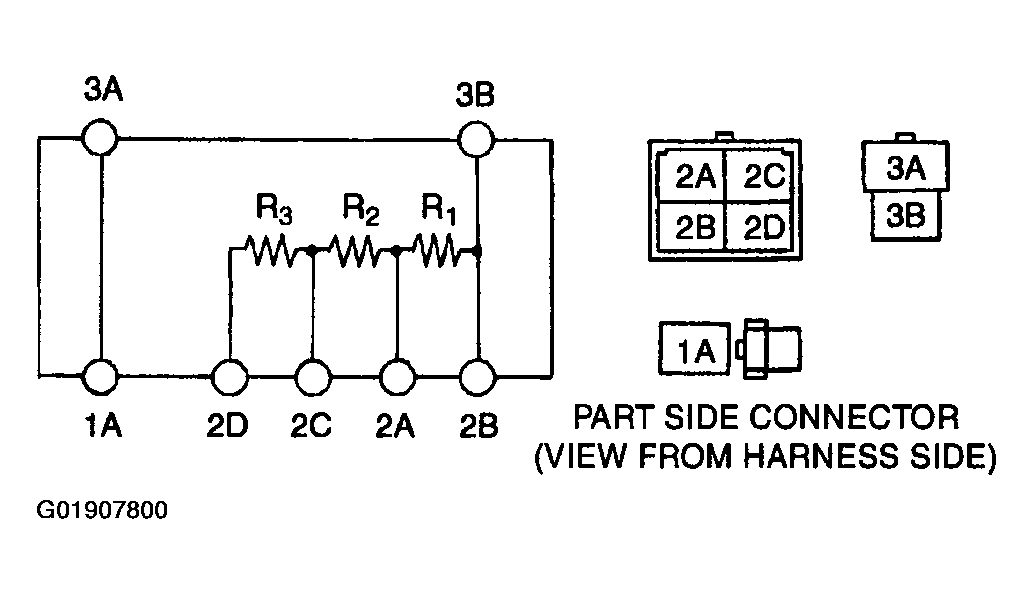

      Fig 1: Inspecting Resistor (1 Of 2)
      G01907800Courtesy of MAZDA MOTORS CORP.

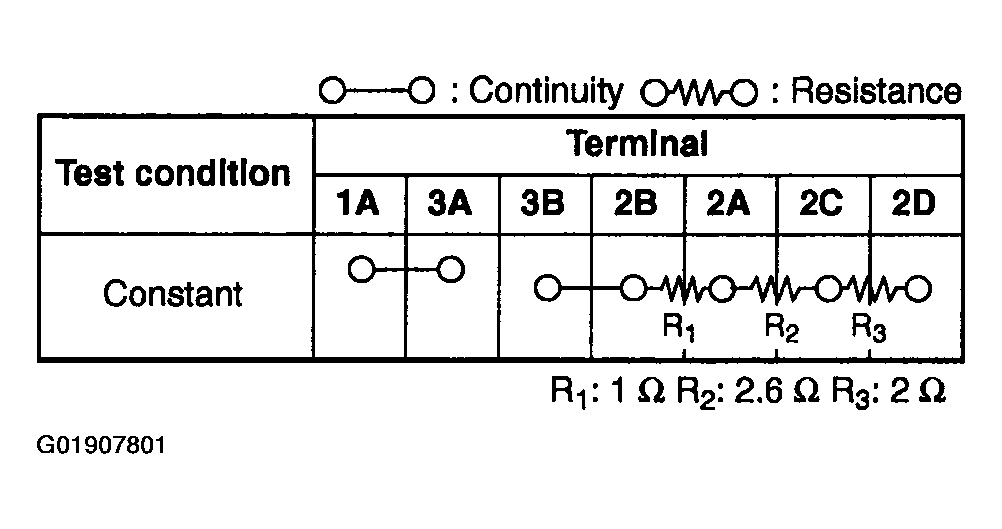

    Fig 2: Inspecting Resistor (2 Of 2)
    G01907801Courtesy of MAZDA MOTORS CORP.
