Refrigerant Pressure Switch Inspection

  1. Install the manifold gauge set. (See MANIFOLD GAGES SET INSTALLATION .)
  2. Disconnect the refrigerant pressure switch connector.
  3. Verify the high-pressure side reading of the manifold gage.

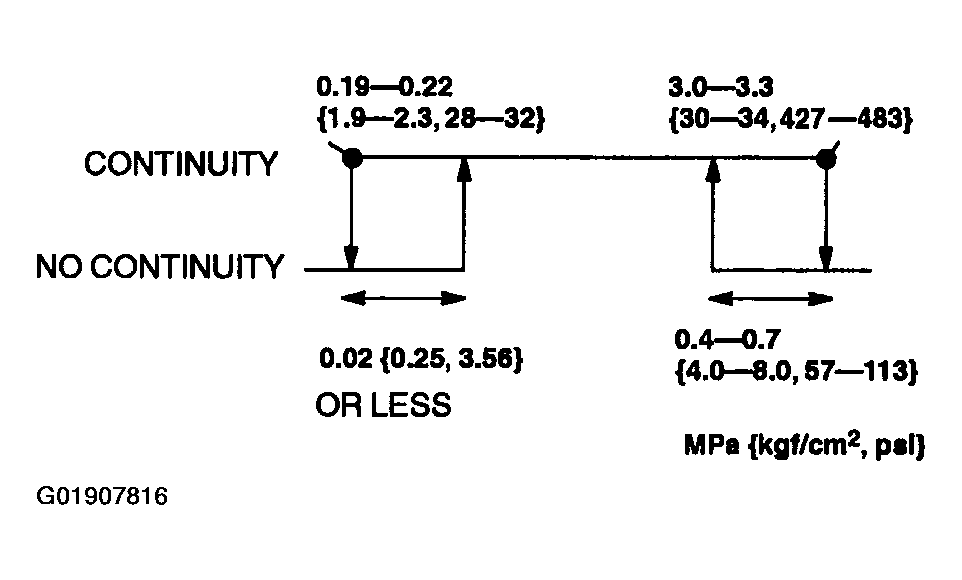

    Fig 1: Inspecting Refrigerant Pressure Switch (1 Of 2)
    G01907816Courtesy of MAZDA MOTORS CORP.
  4. Inspect the continuity between the terminals of the refrigerant pressure switch.
    • If not as specified, replace the refrigerant pressure switch.

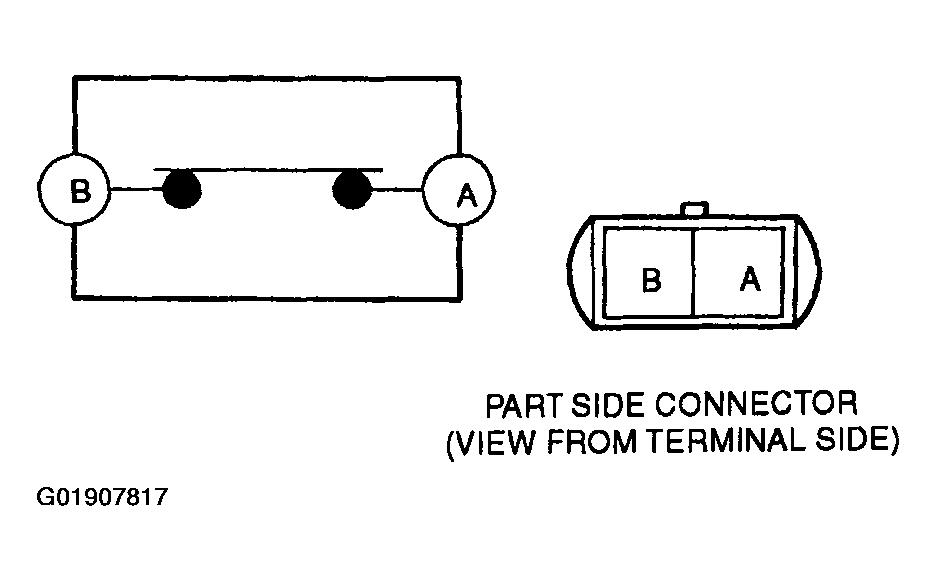

    Fig 2: Inspecting Refrigerant Pressure Switch (2 Of 2)
    G01907817Courtesy of MAZDA MOTORS CORP.
