Magnetic Clutch Disassembly/Assembly: Notes

  1. Remove the A/C compressor. (See A/C COMPRESSOR REMOVAL/INSTALLATION .)
  2. Disassembly in the order indicated in the figure.

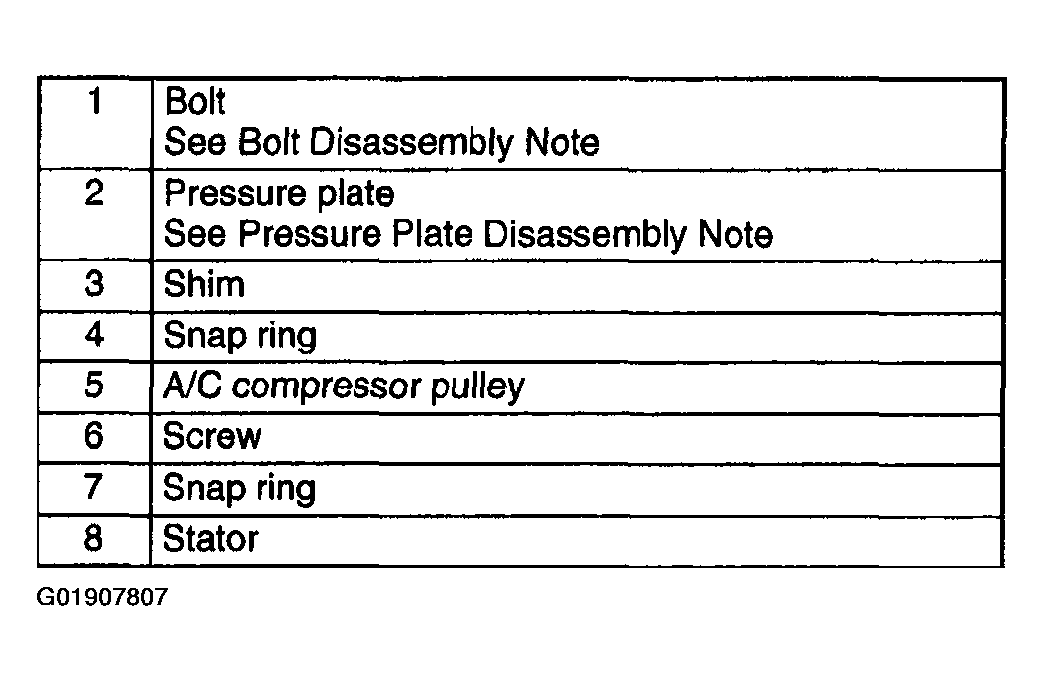

    Fig 1: Magnetic Clutch Disassembling Order
    G01907807Courtesy of MAZDA MOTORS CORP.

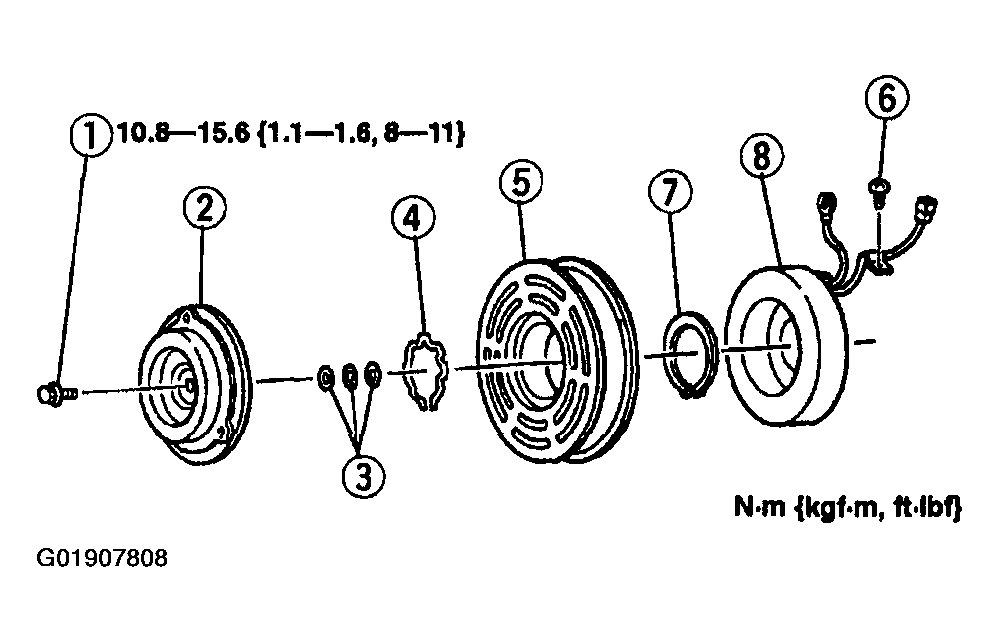

    Fig 2: Disassembling/Assembling Magnetic Clutch
    G01907808Courtesy of MAZDA MOTORS CORP.
  3. Assemble in the reverse order of disassembly.
  4. Adjust the magnetic clutch clearance. (See MAGNETIC CLUTCH ADJUSTMENT  .)
