Bolt Disassembly Note

  1. Remove the bolt using the SST  (Magnetic Clutch Stopper).

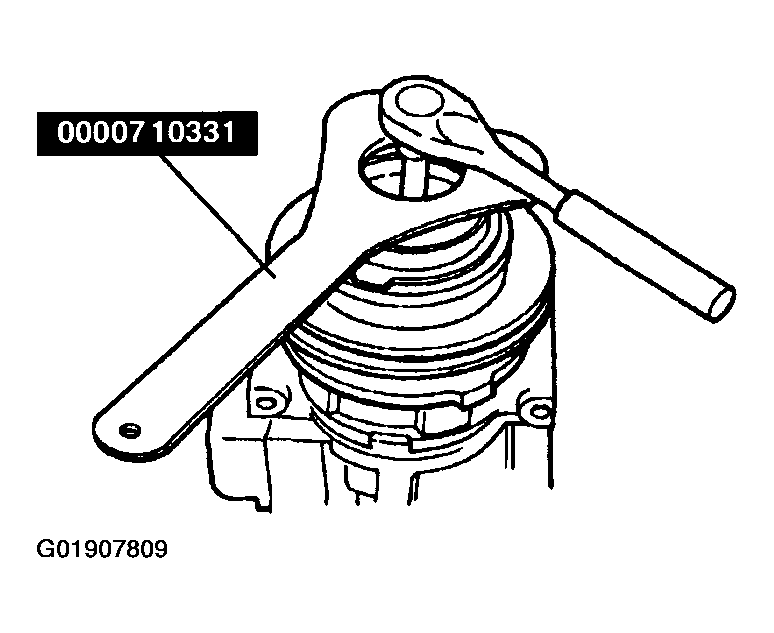

    Fig 1: Removing Bolt (Magnetic Clutch Stopper)
    G01907809Courtesy of MAZDA MOTORS CORP.
