Condenser Fan Removal/Installation

  1. Disconnect the negative battery cable.
  2. Loosen the lower installation bolt of condenser fan.
  3. Remove in the order indicated in the figure.

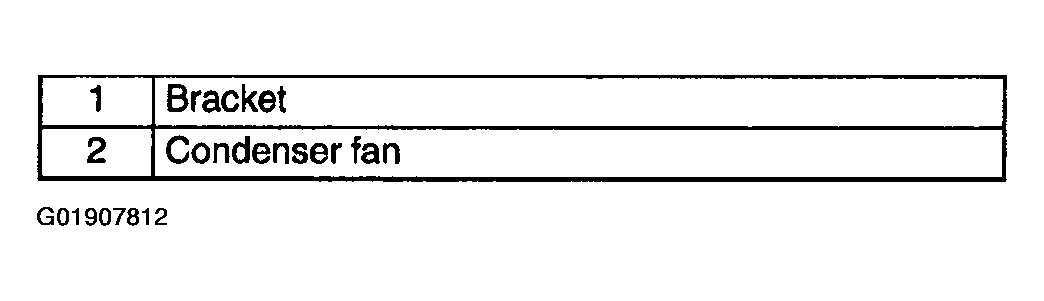

    Fig 1: Condenser Fan Removing Order
    G01907812Courtesy of MAZDA MOTORS CORP.

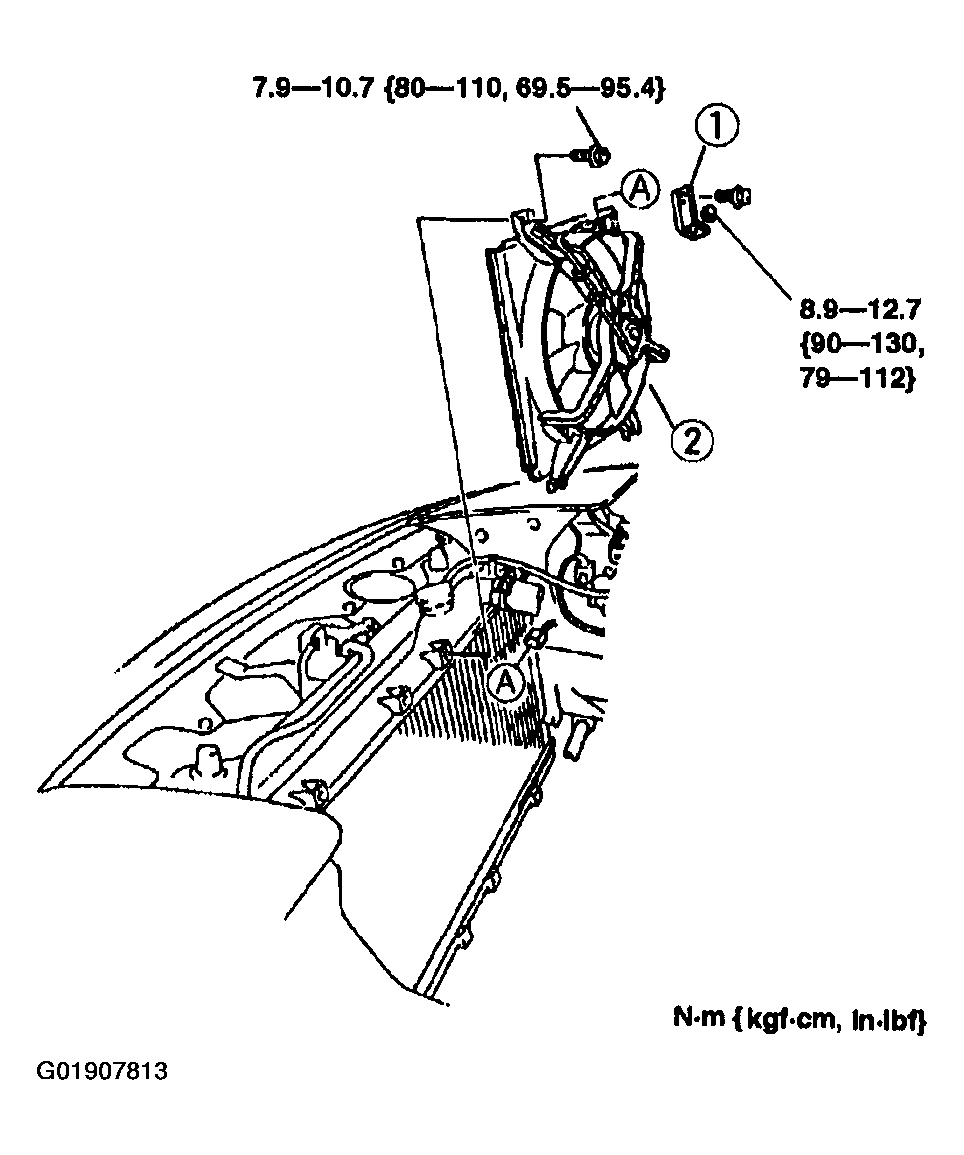

    Fig 2: Removing/Installing Condenser Fan
    G01907813Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
