Condenser Fan Inspection

  1. Disconnect the condenser fan connector.
  2. Connect B+ to terminal A and ground to terminal B of the condenser fan, and verify that air blows towards the engine.
    • If the condenser fan does not operate, replace the condenser fan.

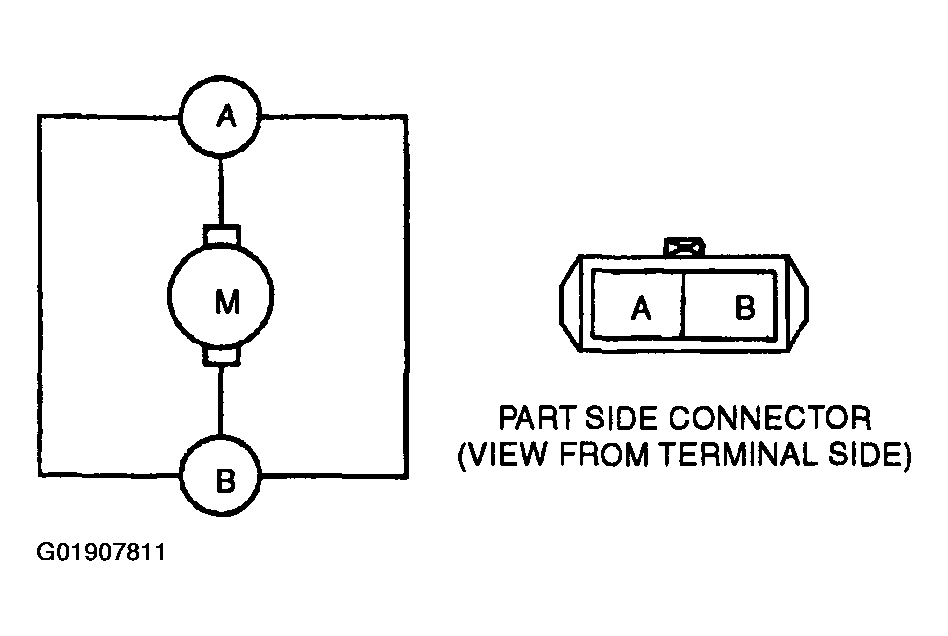

    Fig 1: Inspecting Condenser Fan
    G01907811Courtesy of MAZDA MOTORS CORP.
