Airflow Mode Wire

  1. Set the airflow mode control dial at VENT.
  2. Set the airflow mode link to VENT in the direction of the arrow and insert a screwdriver into the set hole.

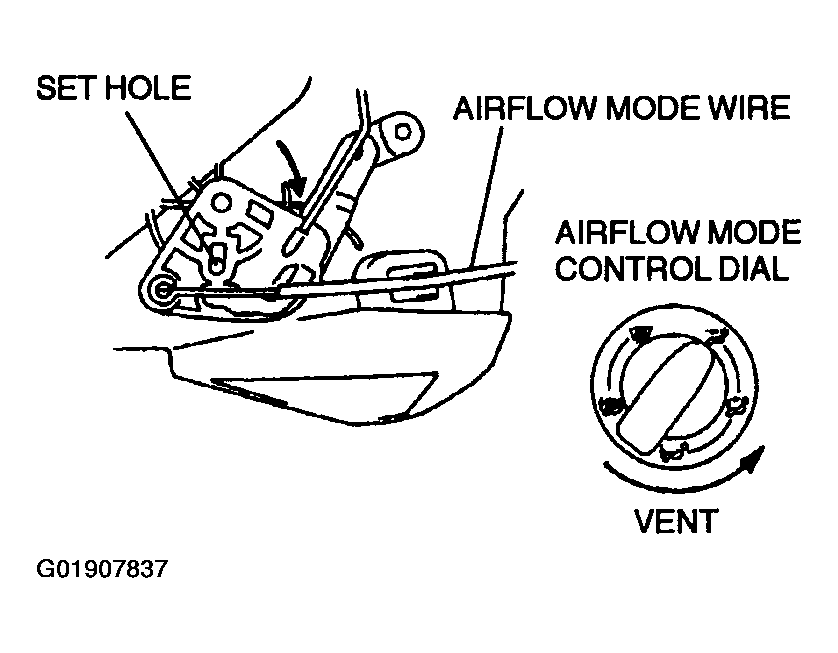

    Fig 1: Adjusting Climate Control Unit (Airflow Mode) Wire
    G01907837Courtesy of MAZDA MOTORS CORP.
  3. Connect the airflow mode wire to the airflow mode link.
  4. Clamp the airflow mode wire to wire clamp.
  5. Verify that the airflow mode control dial moves its full stroke.
