Air Intake Wire

  1. Set the REC/FRESH lever at REC.
  2. Set the air intake link to REC in the direction of the arrow and insert a screwdriver into the set hole.

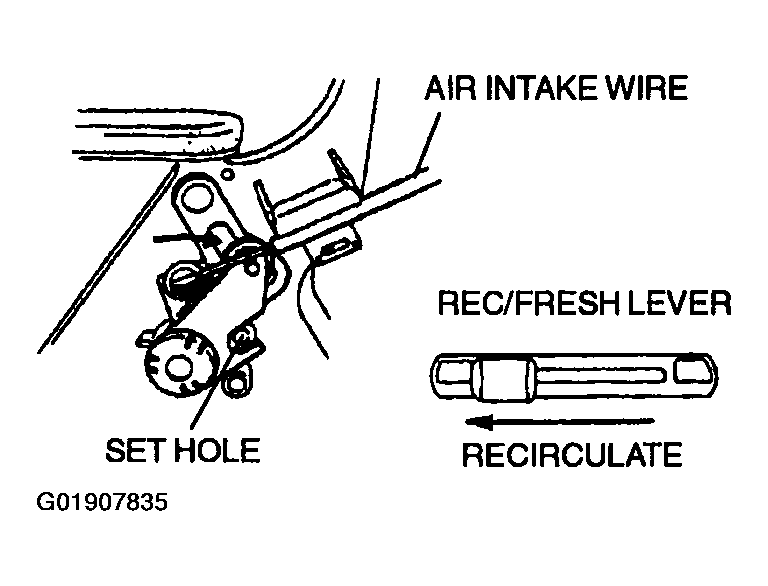

    Fig 1: Adjusting Climate Control Unit (Air Intake) Wire
    G01907835Courtesy of MAZDA MOTORS CORP.
  3. Connect the air intake wire to the air intake link.
  4. Clamp the air intake wire to wire clamp.
  5. Verify that the REC/FRESH lever moves its full stroke.
