Climate Control Unit Installation

  1. Pass each wire through the following routes, then connect them to each unit.
  2. Connect the climate control unit connectors.

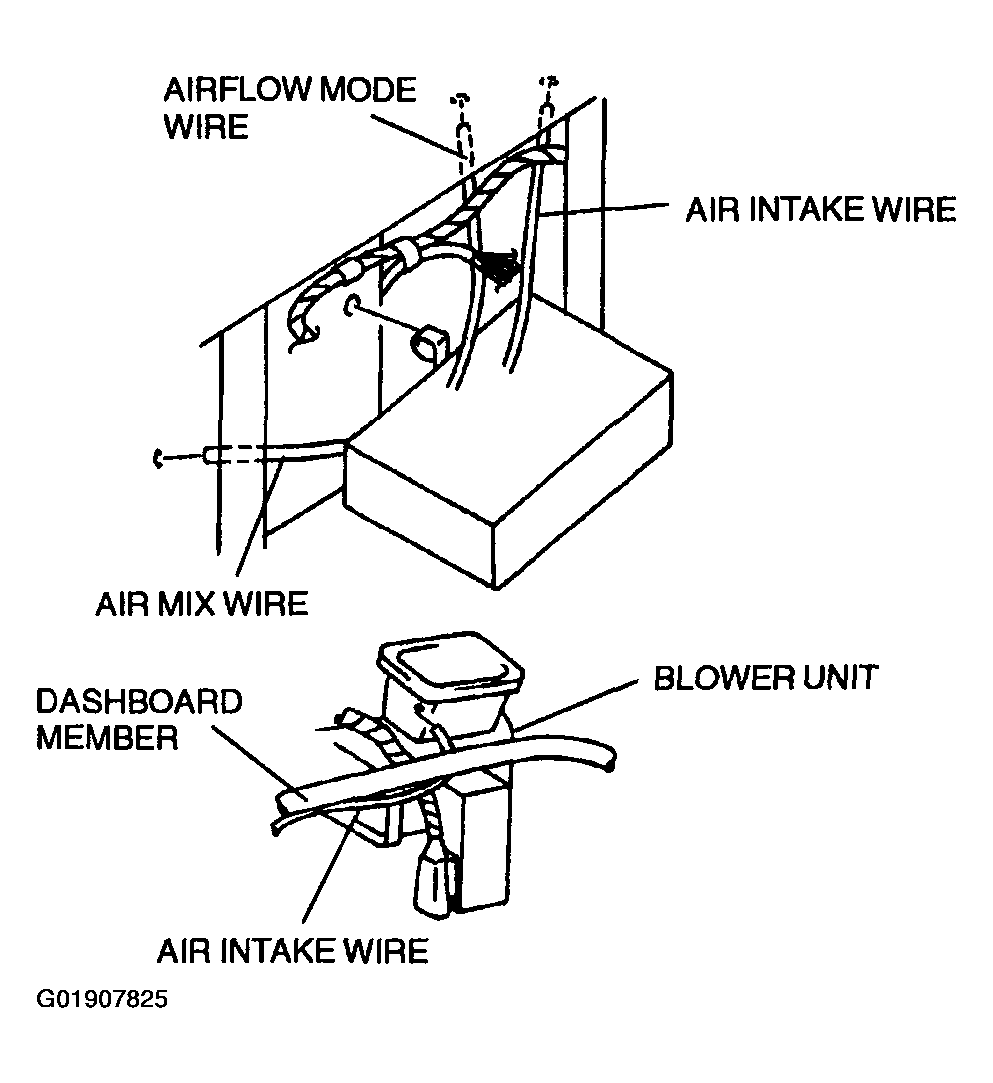

    Fig 1: Installing Climate Control Unit (1 Of 2)
    G01907825Courtesy of MAZDA MOTORS CORP.
  3. Insert the climate control unit until each clip clicks.

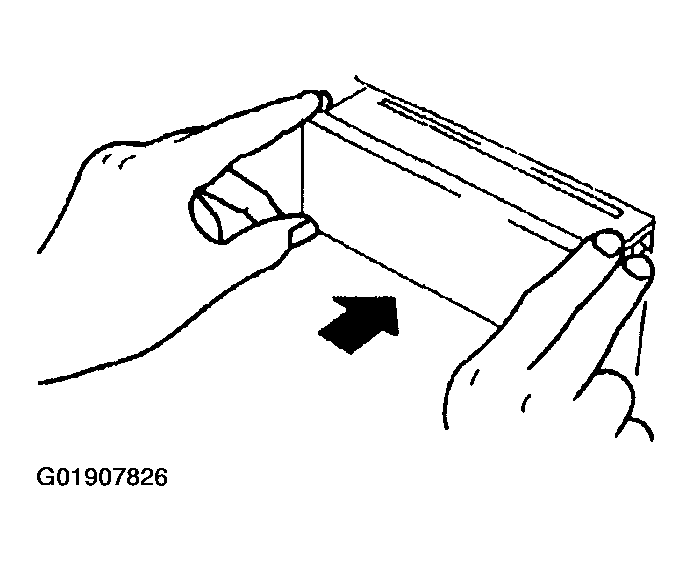

    Fig 2: Installing Climate Control Unit (2 Of 2)
    G01907826Courtesy of MAZDA MOTORS CORP.
  4. Install the hole covers carefully to prevent the posts from breaking off.
  5. Adjust the climate control unit wire. (See CLIMATE CONTROL UNIT WIRE ADJUSTMENT  .)
  6. Connect the negative battery cable.
