Fan Switch

  1. Remove the climate control unit. (See CLIMATE CONTROL UNIT REMOVAL  .)
  2. Inspect for continuity between the fan switch terminals using an ohmmeter.
    • If not as specified, replace the fan and rear window defroster switch.

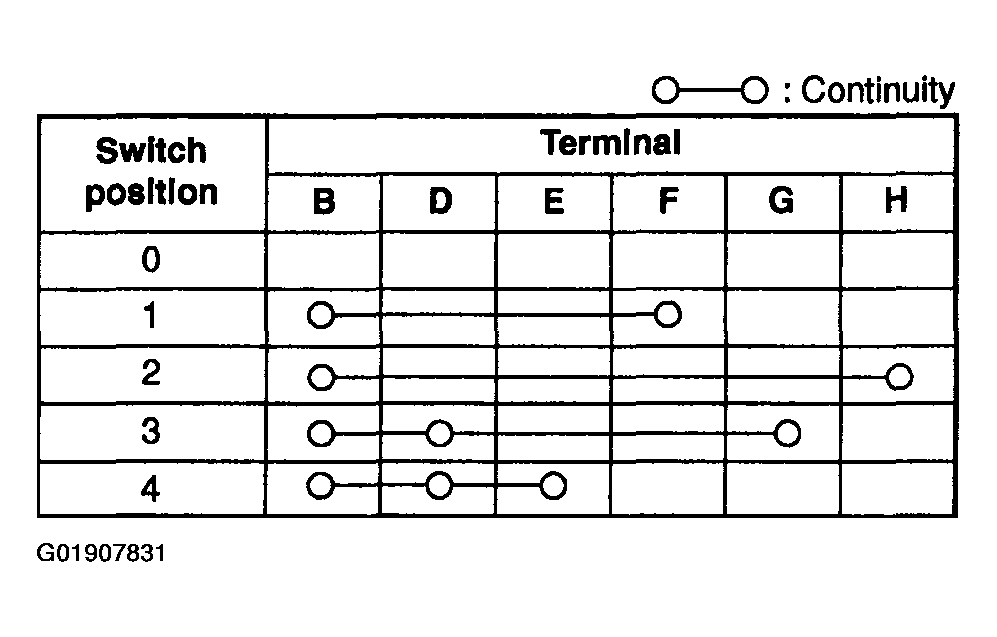

    Fig 1: Inspecting Fan Switch (1 Of 2)
    G01907831Courtesy of MAZDA MOTORS CORP.

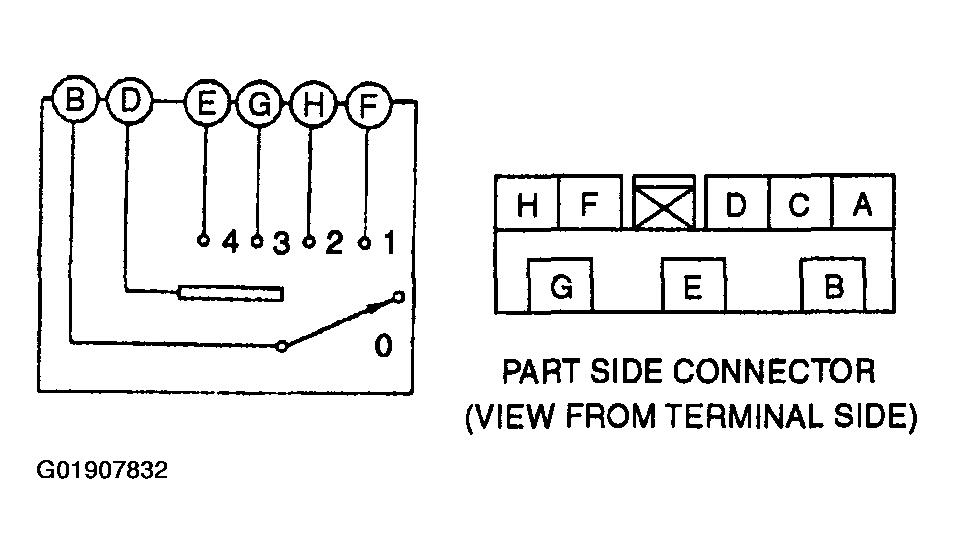

    Fig 2: Inspecting Fan Switch (2 Of 2)
    G01907832Courtesy of MAZDA MOTORS CORP.
