Defroster Switch

  1. Remove the climate control unit. (See CLIMATE CONTROL UNIT REMOVAL  .)
  2. Inspect for continuity between the defroster switch terminals using an ohmmeter.
    • If not as specified, replace the defroster switch.

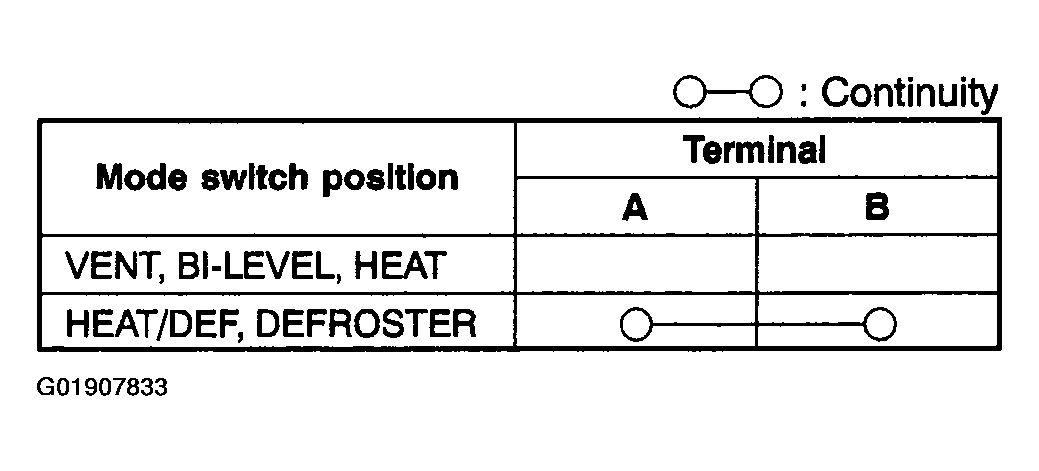

    Fig 1: Inspecting Defroster Switch (1 Of 2)
    G01907833Courtesy of MAZDA MOTORS CORP.

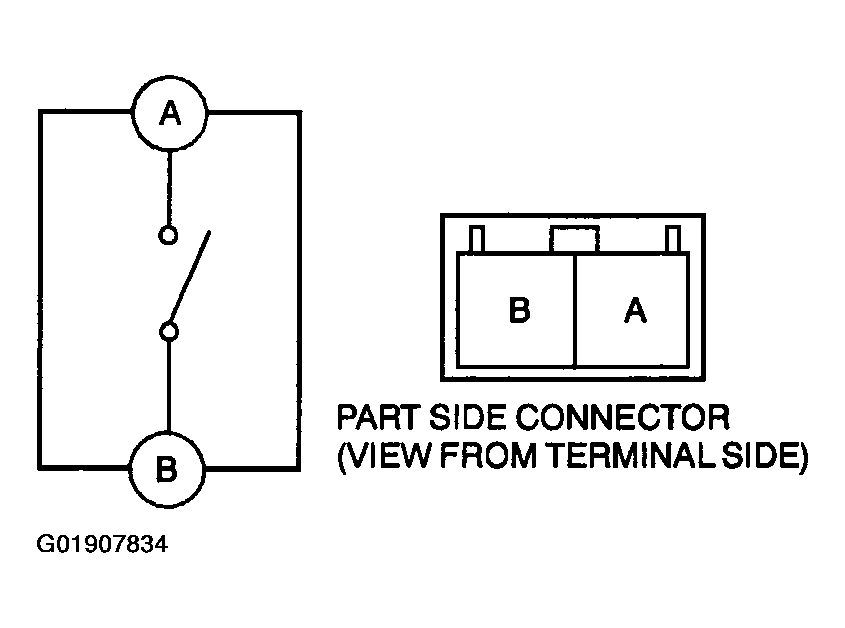

    Fig 2: Inspecting Defroster Switch (2 Of 2)
    G01907834Courtesy of MAZDA MOTORS CORP.
