A/C Switch

  1. Remove the climate control unit. (See CLIMATE CONTROL UNIT REMOVAL  .)
  2. Inspect for continuity between the A/C switch terminals using an ohmmeter.

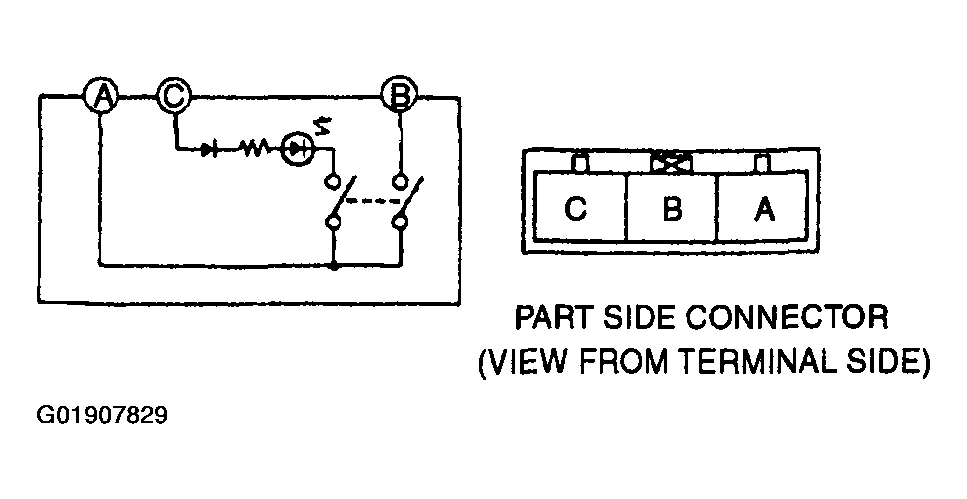

    Fig 1: A/C Switch Inspection Table (1 Of 2)
    G01907829Courtesy of MAZDA MOTORS CORP.

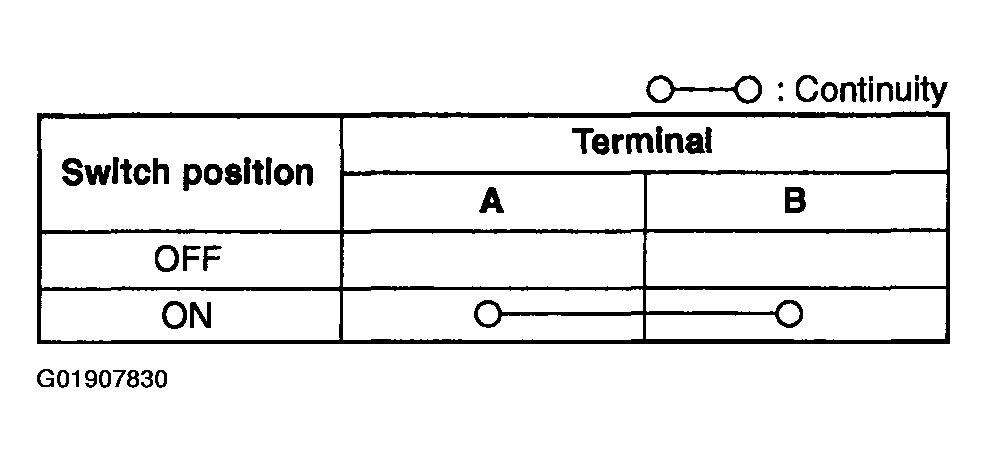

    Fig 2: A/C Switch Inspection Table (2 Of 2)
    G01907830Courtesy of MAZDA MOTORS CORP.
  3. Connect battery positive voltage to terminal C and ground to the terminal A.
  4. Turn the A/C switch on.
  5. Verify that the LED illuminates.
    • If not as specified, replace the A/C switch.
