Climate Control Unit Disassembly/Assembly

  1. Disassemble in the order indicated in the figure.

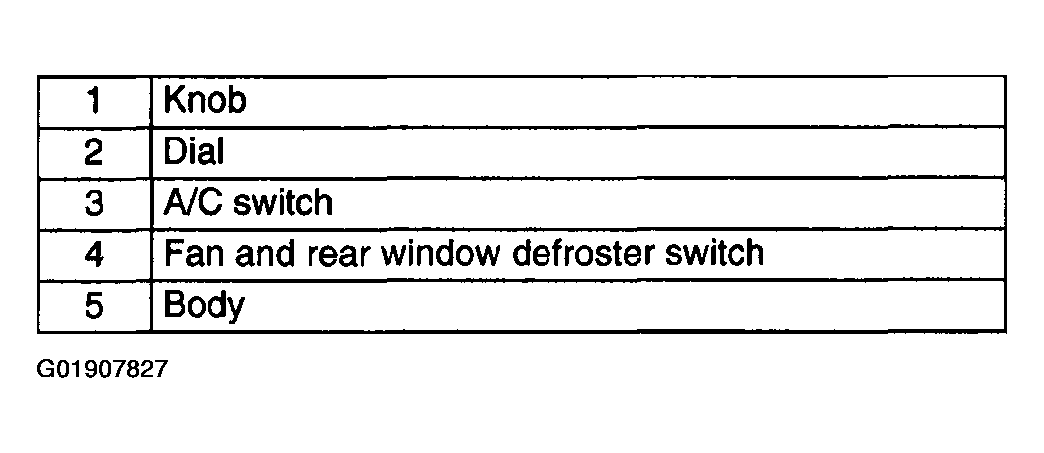

    Fig 1: Climate Control Unit Disassembling Order
    G01907827Courtesy of MAZDA MOTORS CORP.

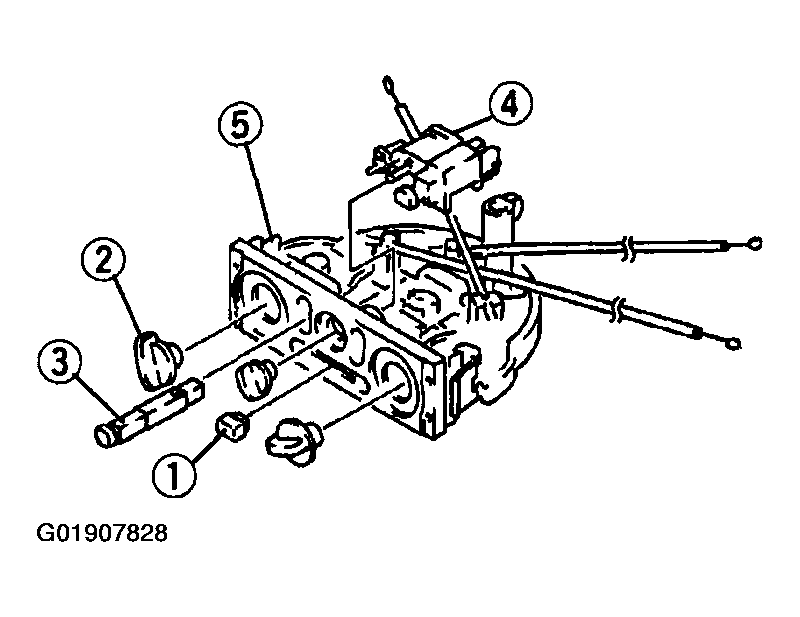

    Fig 2: Disassembling/Assembling Climate Control Unit
    G01907828Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
