Diagnostic Procedure
- Verify Related Repair Information Availability - Turn ignition off. Connect scan tool to DLC-2. See Figure. Turn ignition on, engine off. Monitor for FREEZE FRAME DATA and ensure data has been recorded. Check service bulletins for repair information related to this DTC. If repair information is not available, go to next step. If repair information is available, perform diagnosis and repair as necessary. After repair, go to step 6.
- Inspect If ECT Sensor Terminal Is Bent - Turn ignition off. Disconnect ECT sensor 3-pin harness connector. See Figure. Check ECTsensor for poor connection due to damaged, pulled-out pins, corrosion, etc. If connector terminals are okay, go to next step. If connector terminals are found faulty, repair or replace as necessary. After repair, go to step 6.
- Determine If ECT Sensor Malfunction Or Harness Malfunction - Measure resistance between ECT sensor 3-pin connector terminals "A" and "B". Resistance reading should be 2270-2740 ohms at 68°F (20°C). If resistance reading is as specified, go to next step. If resistance reading is not as specified, replace ECT sensor. After repair, go to step 6.

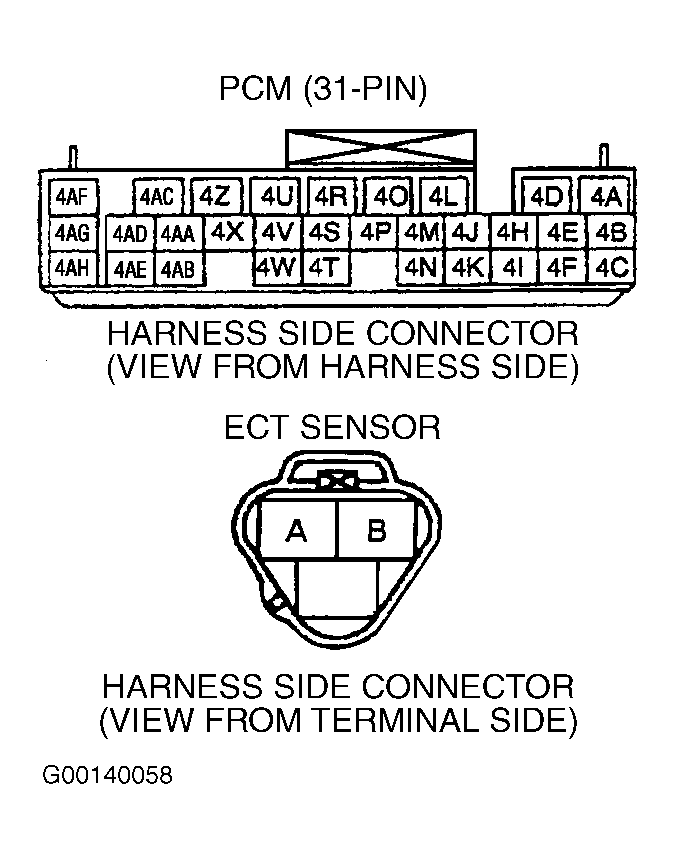

- Inspect ECT Signal Circuit For Short To GND - Disconnect PCM 31-pin harness connector. See Figure. Check for continuity between ground and ECT sensor 3-pin harness connector terminal "A" (Red/Blue wire). If continuity is not present, go to next step. If continuity is found, repair short circuit to ground inRed/Blue wire between ECT sensor 3-pin harness connector terminal "A" and PCM 31-pin harness connector terminal "4P". See appropriate WIRING DIAGRAM under ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS. After repair, go to step 6.
- Inspect ECT Circuit For Short Harnesses - Check for continuity between ECT sensor 3-pin harness connector terminals "A" (Red/Blue wire) and "B" (Black/Red wire). If continuity is not present, go to next step. If continuity is present, repair short between ECT sensor circuits (Red/Blue and Black/Red wires). After repair, go to next step.
- Verify Troubleshooting Of DTC P0117 Completed - Return vehicle to original condition. Using scan tool, clear DTCs from PCM memory. See CLEARING DIAGNOSTIC TROUBLE CODES under SELF-DIAGNOSTIC SYSTEM. Let engine cool down for 6 hours. Start engine and let it idle for 5 minutes. Monitor for pending DTCs. If same DTC is not present, go to next step. If same DTC P0117 is present, replace PCM. For PCM removal and installation, see POWERTRAIN CONTROL MODULE under COMPUTERIZED ENGINE CONTROLS in REMOVAL, OVERHAUL & INSTALLATION article. After repair, go to next step.
- Verify After Repair Procedure - Using scan tool, perform After Repair Procedure. See AFTER REPAIR PROCEDURE . If no other DTCs are present, testing is complete. If any other DTC is present, follow appropriate DTC diagnostic procedure. See DIAGNOSTIC TROUBLE CODE DEFINITIONS .
