Timing Belt Cover Installation Note

  1. Tighten the timing belt cover bolts in the numerical order shown in the figure.

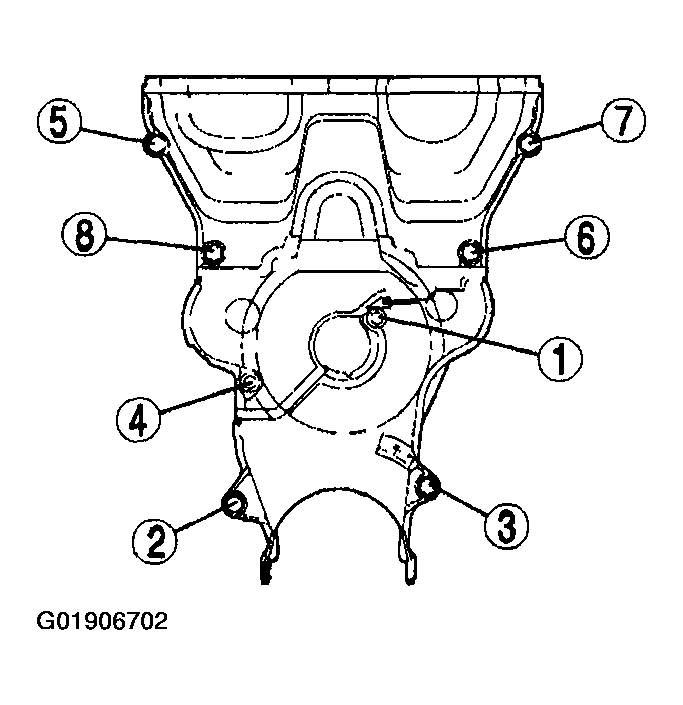

    Fig 1: Timing Belt Cover Bolt Tightening Sequence
    G01906702Courtesy of MAZDA MOTORS CORP.
