Main Bearing Support Plate Installation Note

  1. Apply liquid gasket of SH780 or TB1207B to main bearing support plate ceaselessly as shown in the figure.

    Thickness

    1. Phi 2.5-3.5 mm {0.099-0.137 in}

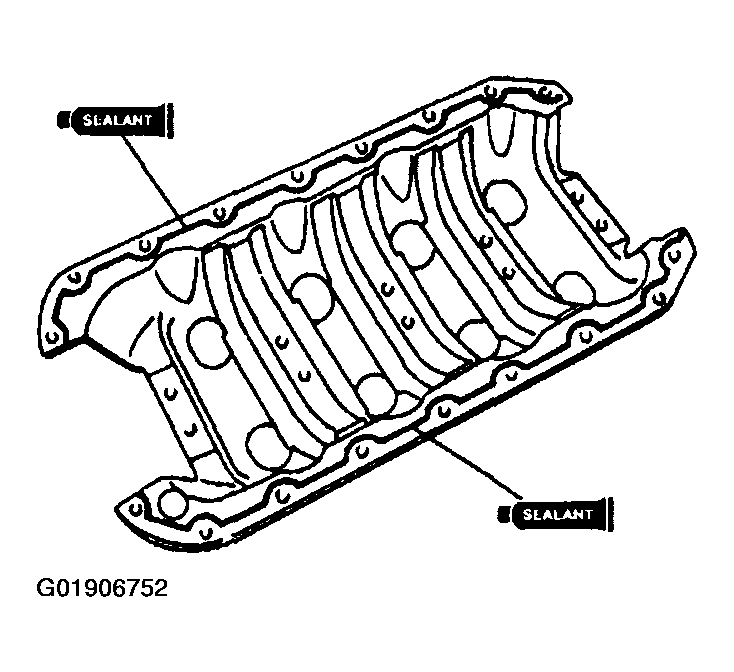

    Fig 1: Applying Liquid Gasket Of SH780 Or TB1207B To Main Bearing Support Plate Ceaselessly
    G01906752Courtesy of MAZDA MOTORS CORP.
