Thermostat Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the air hose.
  3. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT  .)
  4. Remove in the order indicated in the table.

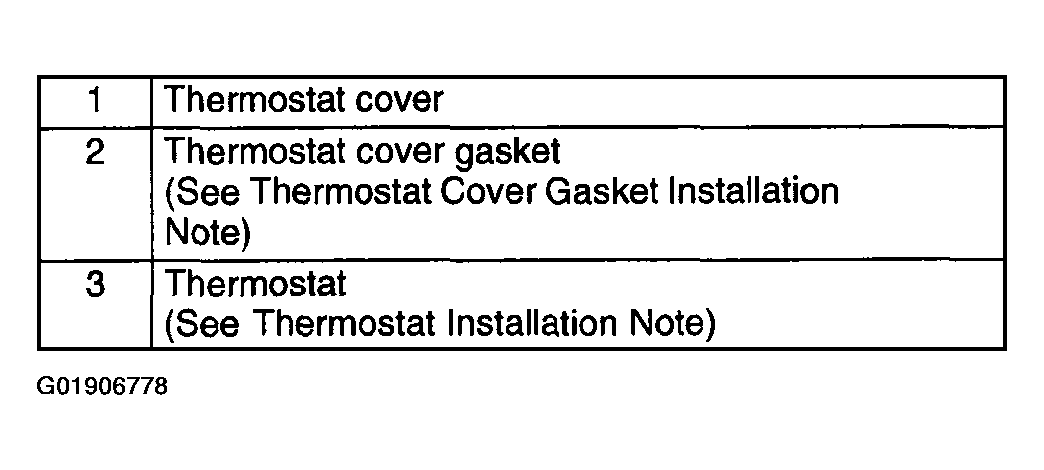

    Fig 1: Thermostat Removal Order Table
    G01906778Courtesy of MAZDA MOTORS CORP.

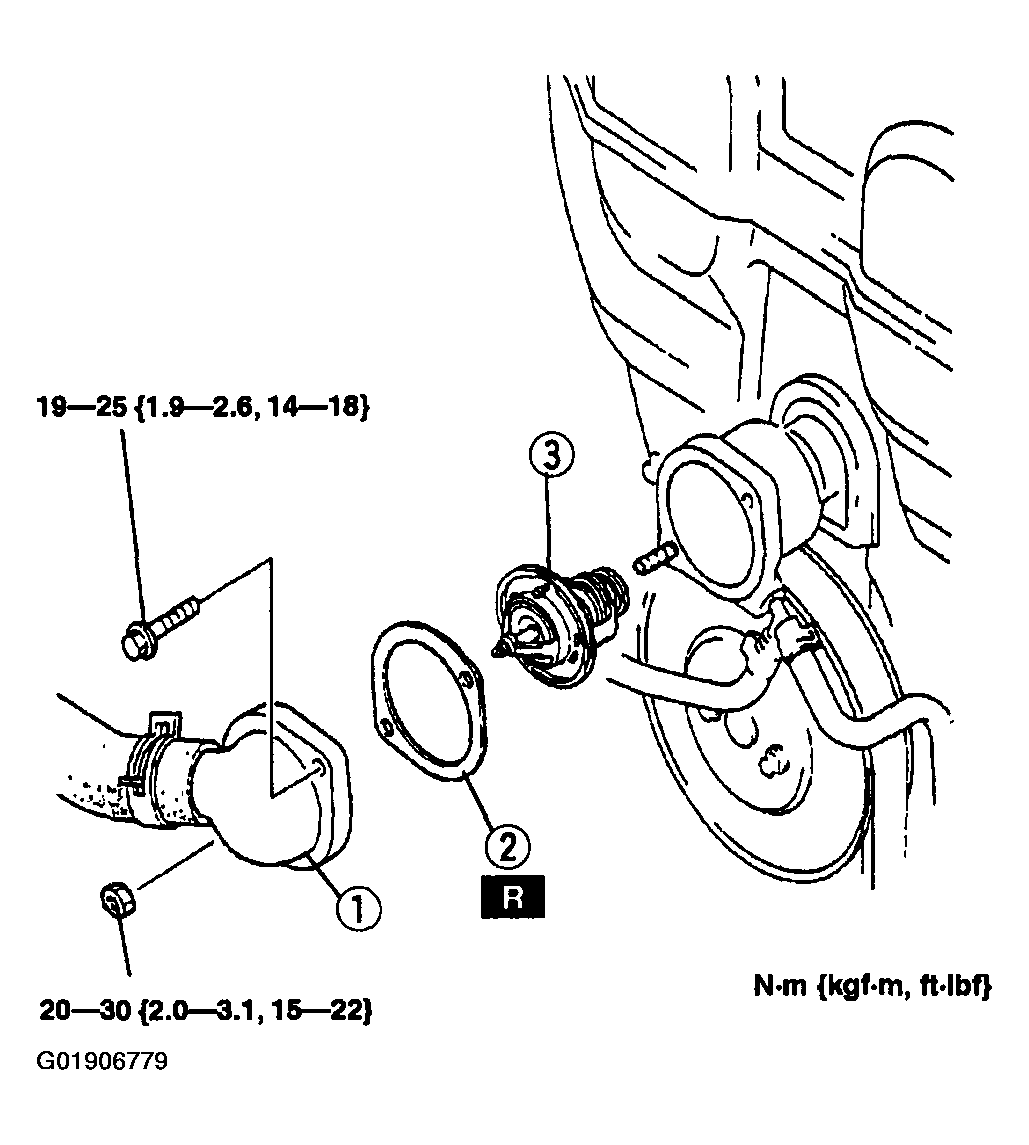

    Fig 2: Removing/Installing Thermostat
    G01906779Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
