Radiator Removal/Installation

  1. Disconnect the negative battery cable.
  2. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT  .)
  3. Remove the air hose.
  4. Remove in the order indicated in the table.

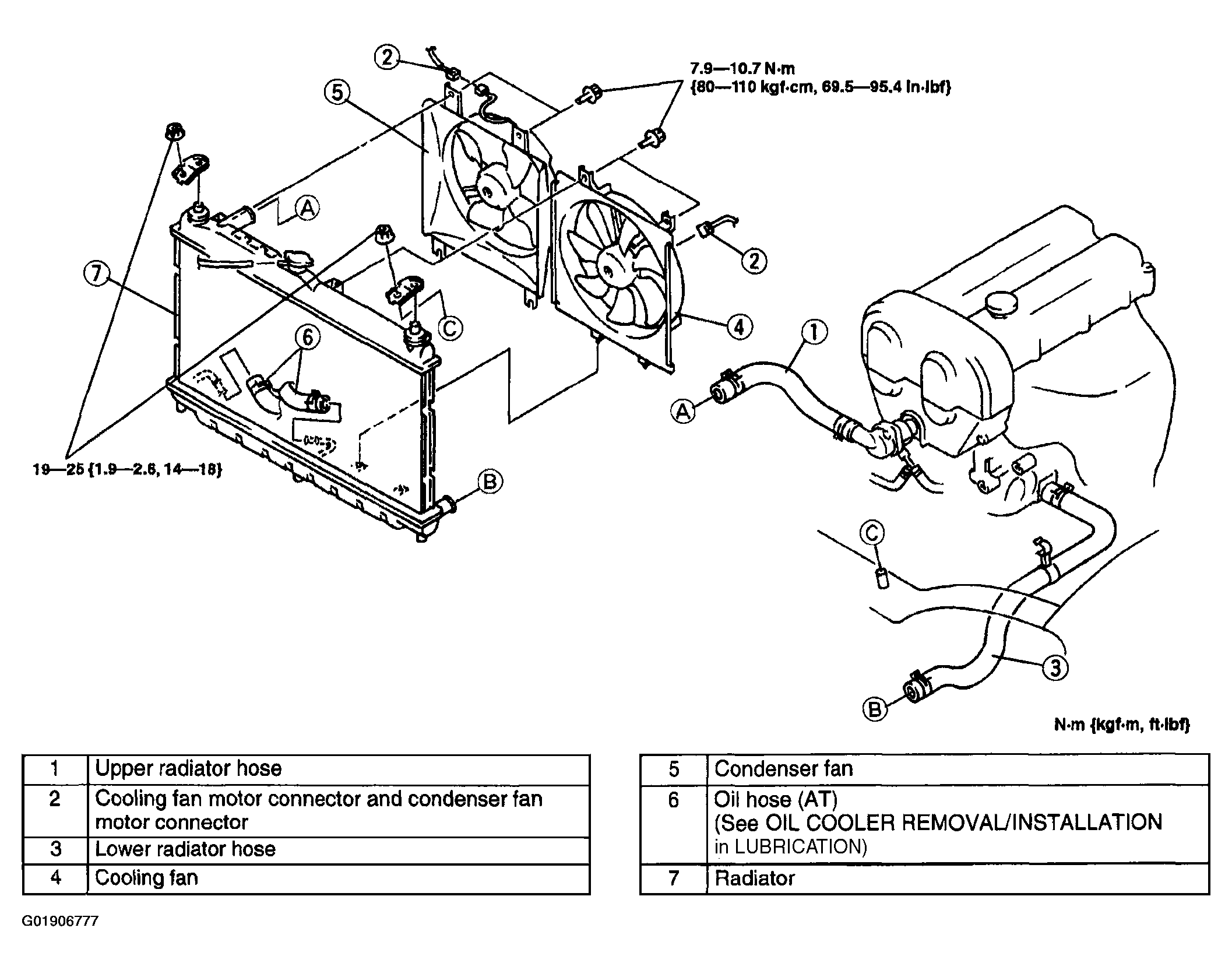

    Fig 1: Removing/Installing Radiator
    G01906777Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
