Instrument Cluster Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the meter hood. (See METER HOOD REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.

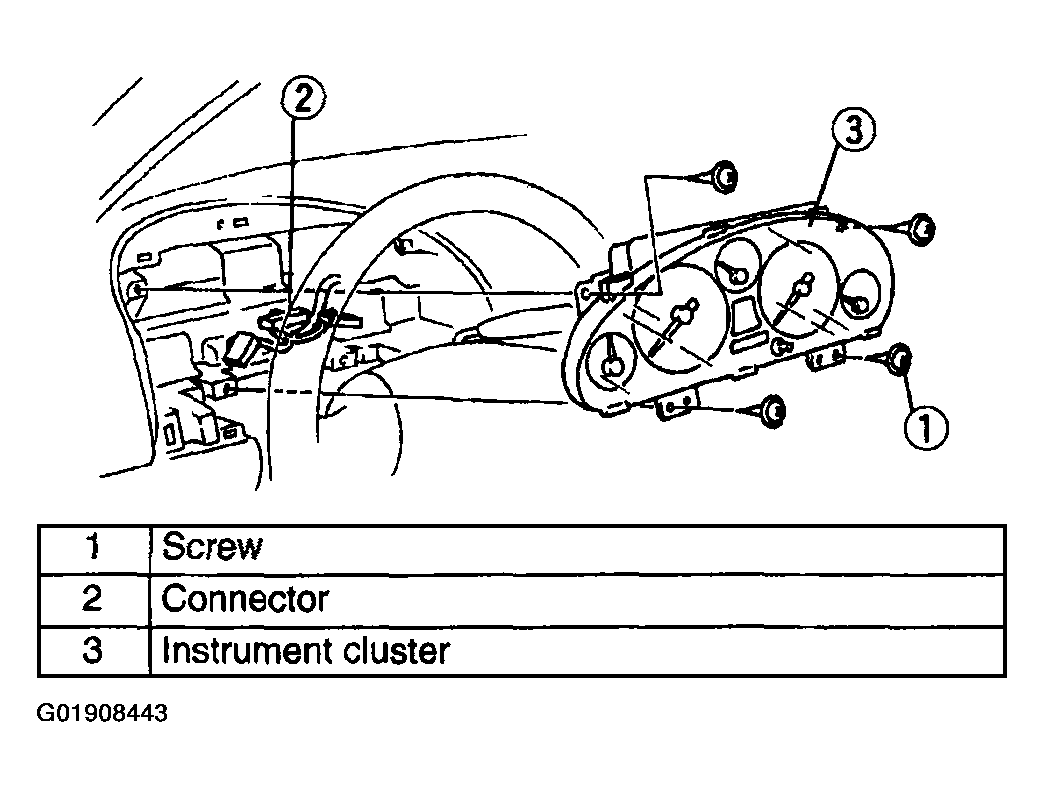

    Fig 1: Removing Instrument Cluster
    G01908443Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
