PID/DATA Monitor Table

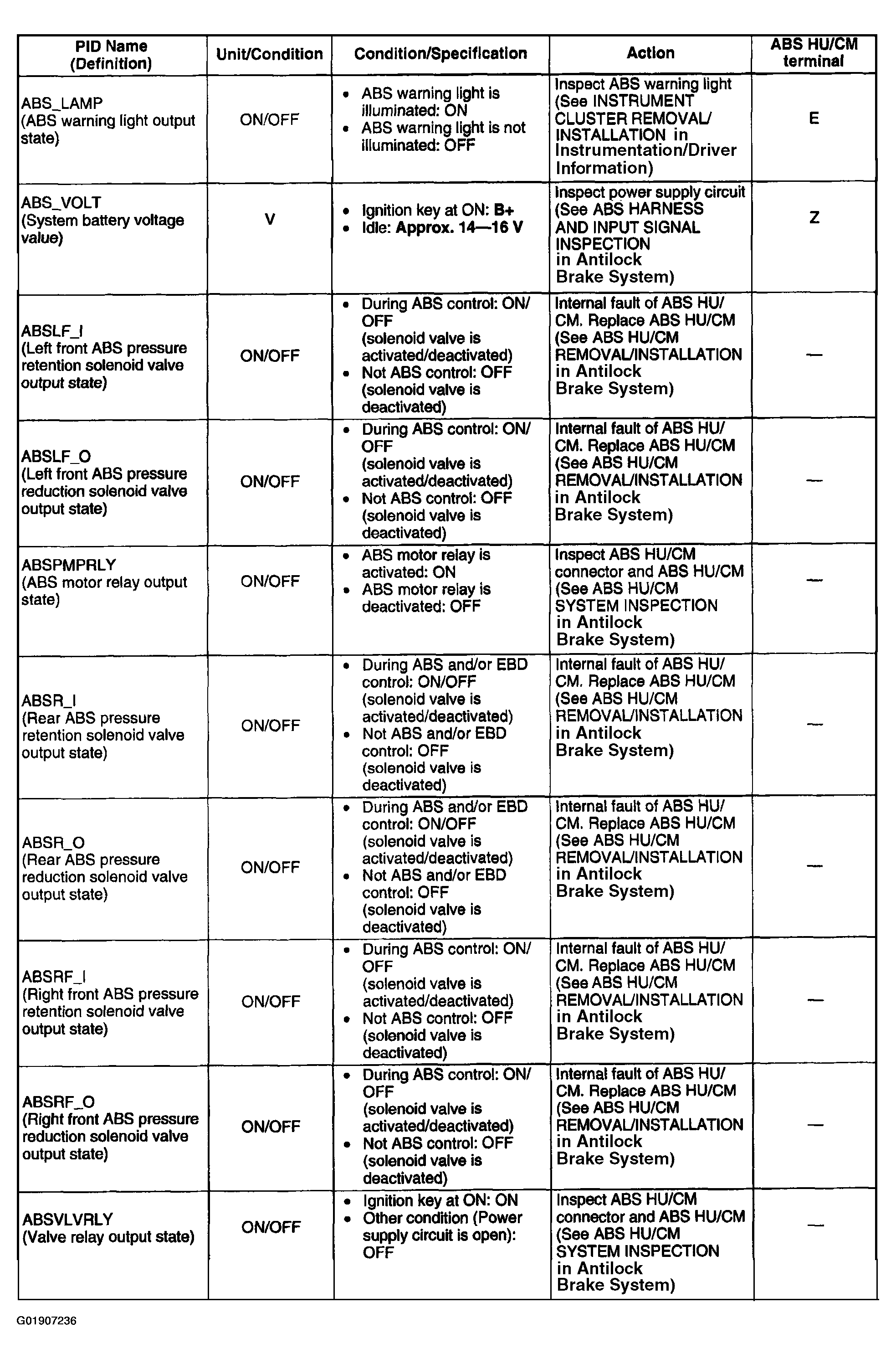

Fig 1: PID/DATA Monitor Table (1 Of 2)

G01907236

Courtesy of MAZDA MOTORS CORP.

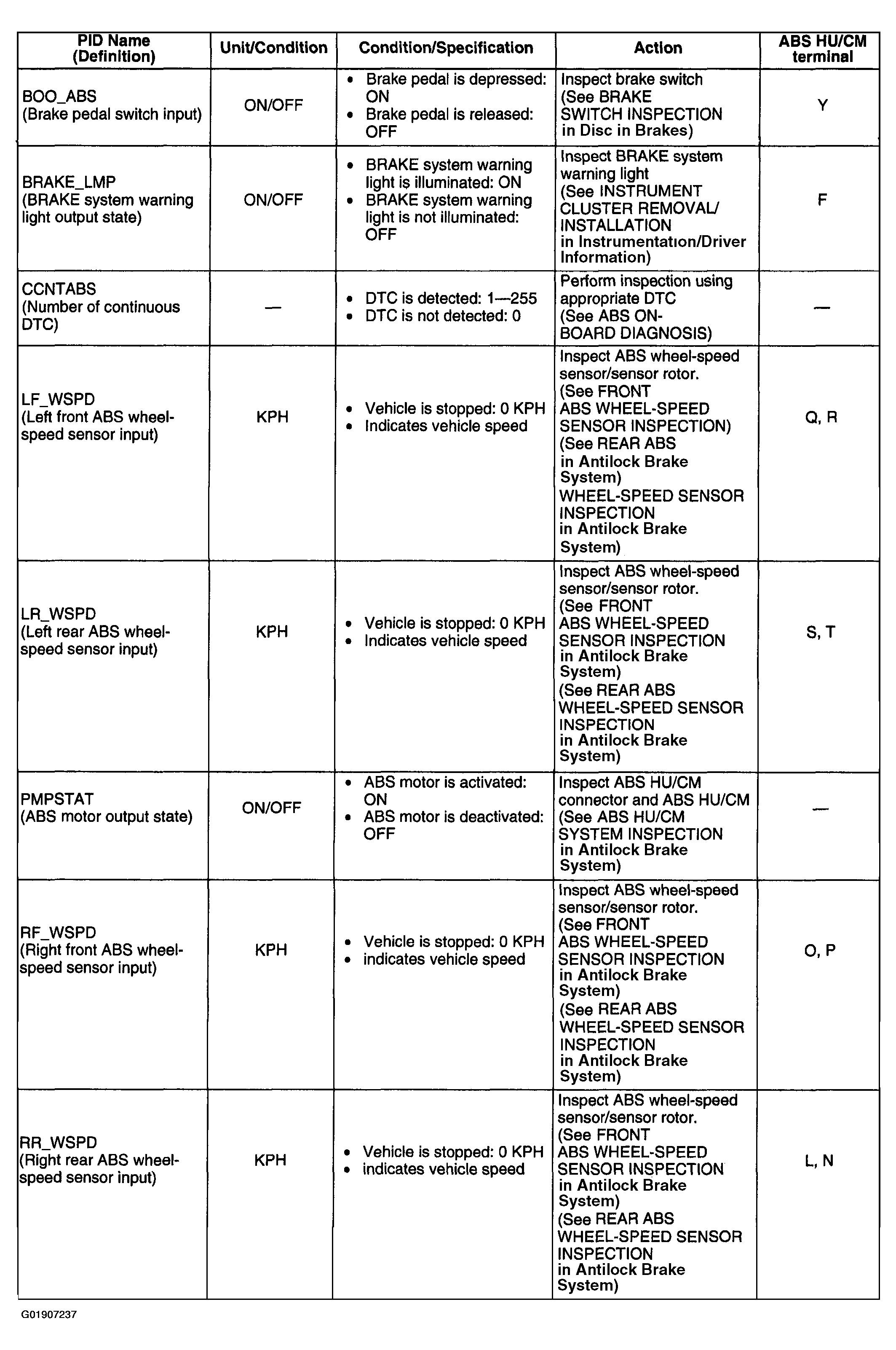

Fig 2: PID/DATA Monitor Table (2 Of 2)

G01907237

Courtesy of MAZDA MOTORS CORP.
