Trunk Side Trim Removal/Installation

  1. Remove the fasteners.
  2. Remove the trunk side trim.

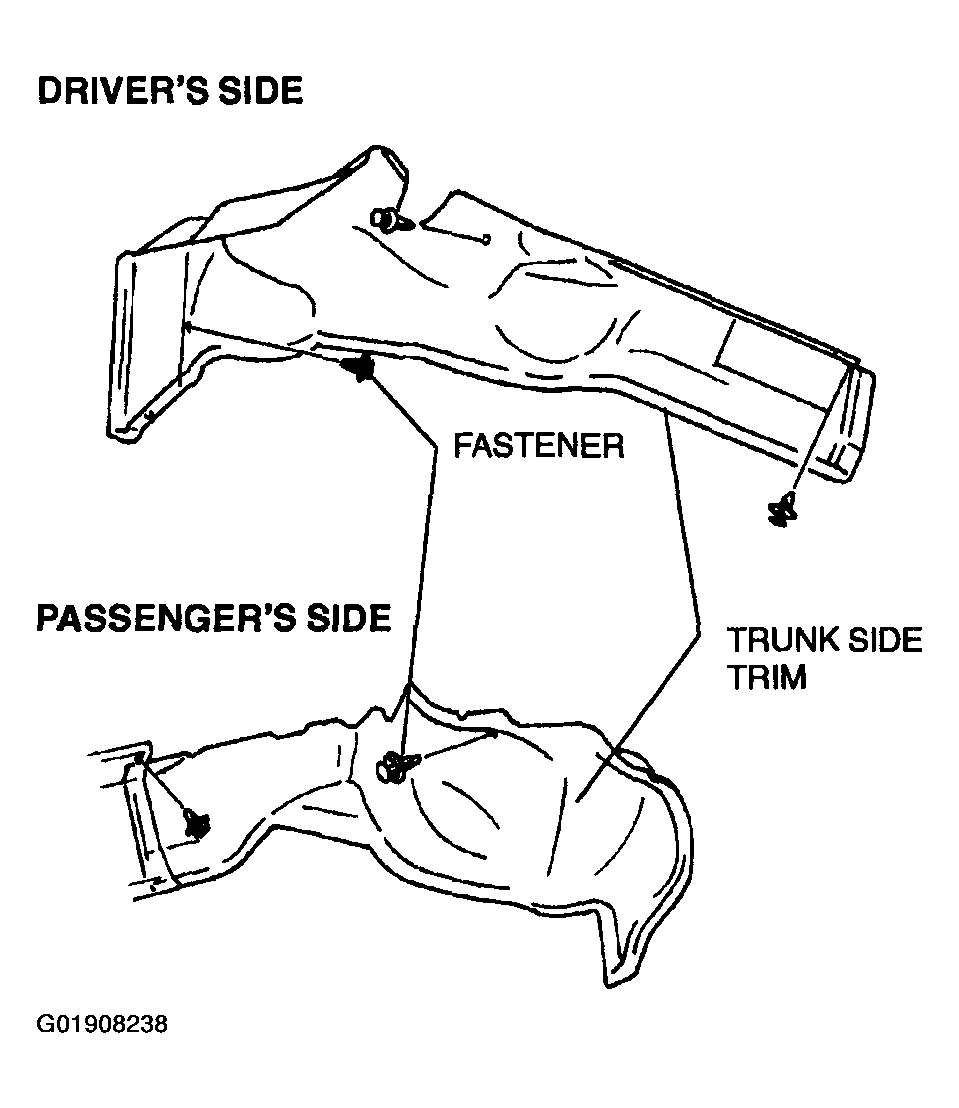

    Fig 1: Removing/Installing Trunk Side Trim
    G01908238Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
