Trunk End Trim Removal/Installation: Notes

  1. Pull the internal trunk lid release handle to disengage it from the holder.
  2. Remove in the order indicated in the figure.

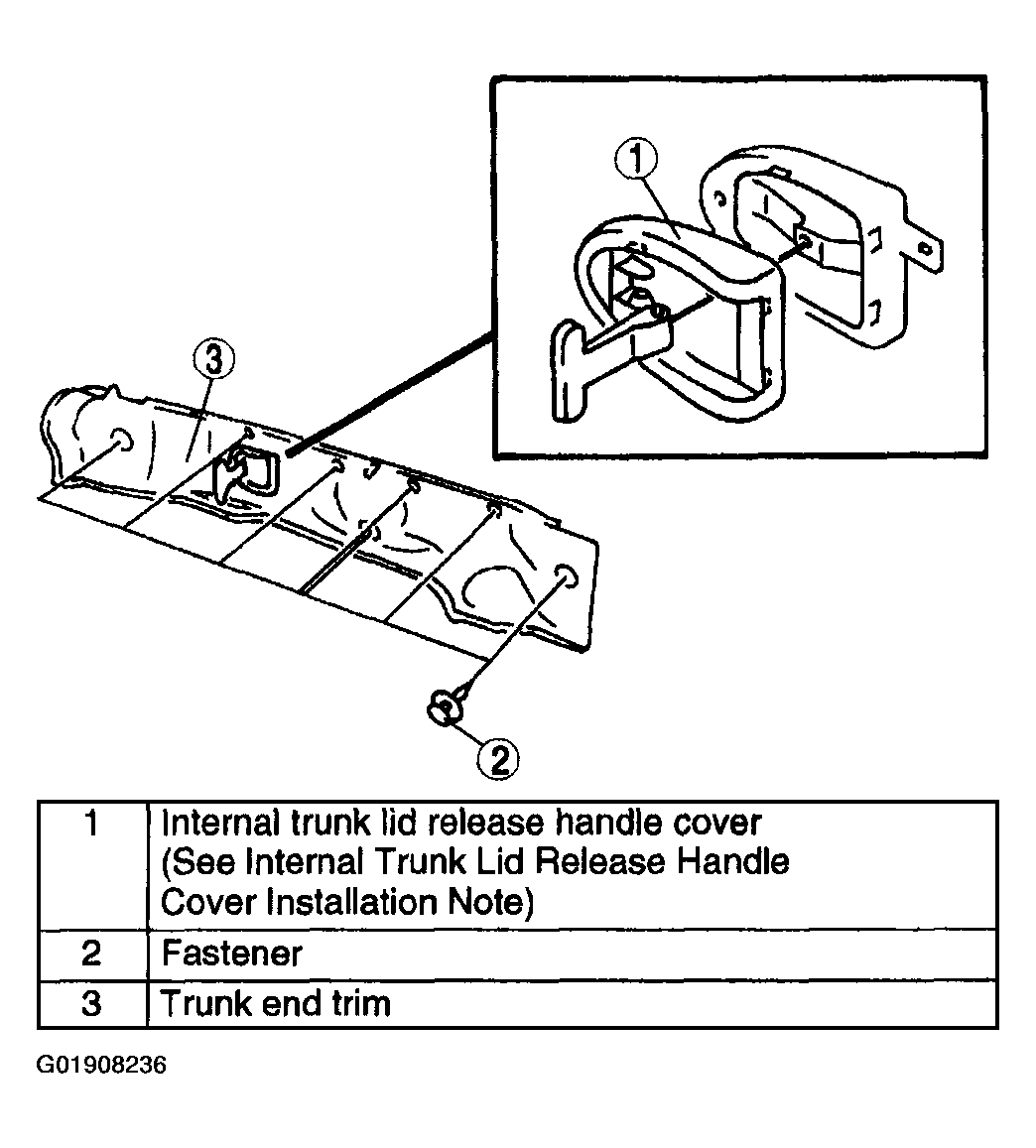

    Fig 1: Removing/Installing Trunk End Trim
    G01908236Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
