Scuff Plate Removal/Installation

  1. Pull the scuff plate upward, then disengage clips A, C and pin B from the body.

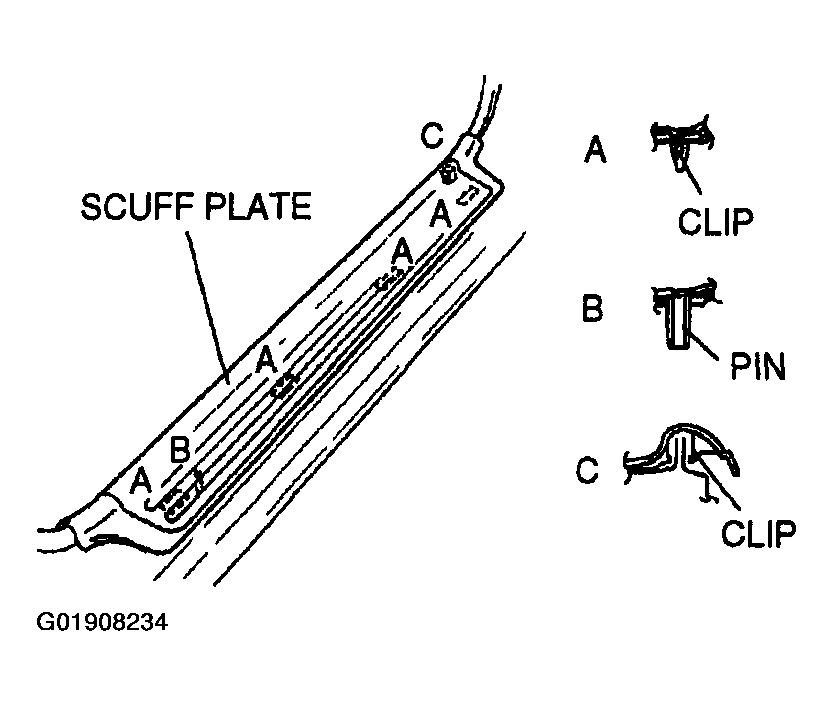

    Fig 1: Removing/Installing Scuff Plate
    G01908234Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
