Rear End Mat Removal/Installation

  1. Remove the fasteners.
  2. Remove the rear end mat.

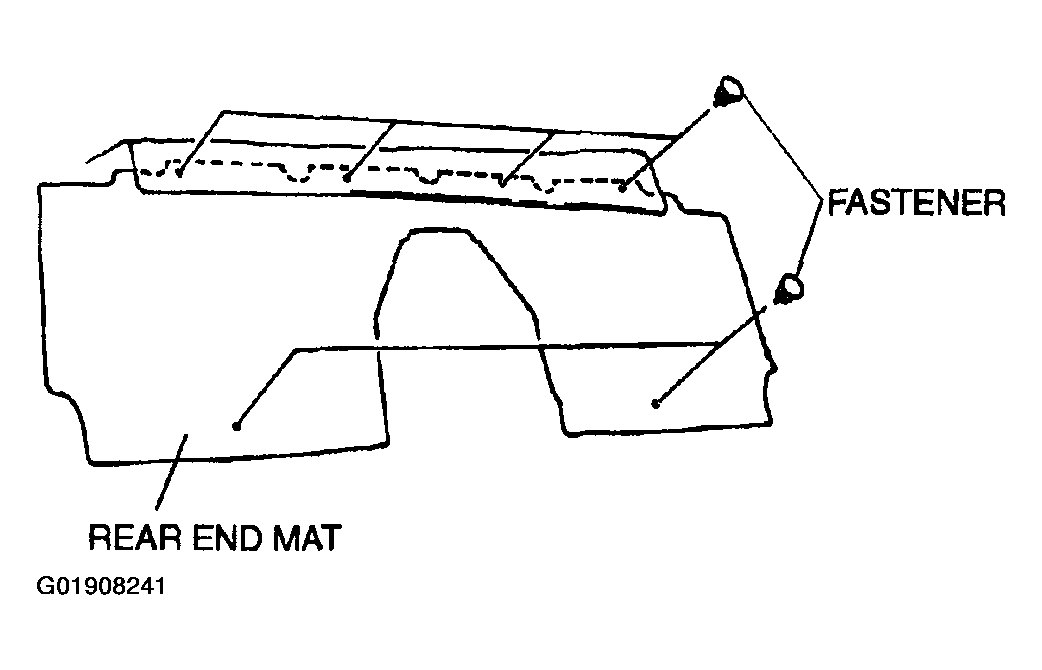

    Fig 1: Removing/Installing Rear End Mat
    G01908241Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
