Lower Panel Removal/Installation

  1. Remove the screws.
  2. Pull the lower panel toward you, then disengage tabs C and pins B from the body.
  3. Pull the lower panel downward, then disengage tabs A from the body.

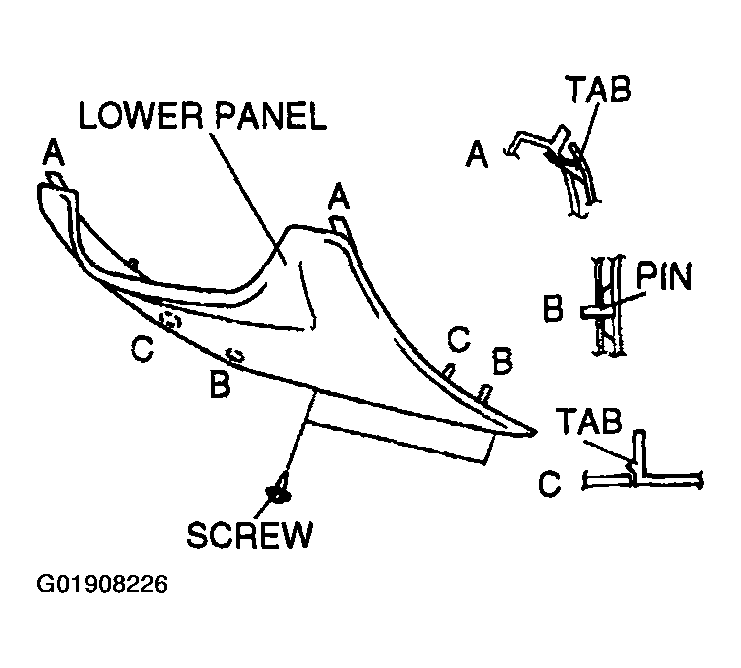

    Fig 1: Removing/Installing Lower Panel
    G01908226Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
