Front Side Trim Removal/Installation

  1. Remove the scuff plate.
  2. Remove the fastener.
  3. Pull the front side trim toward you, then disengage clip A and pins B from the body.

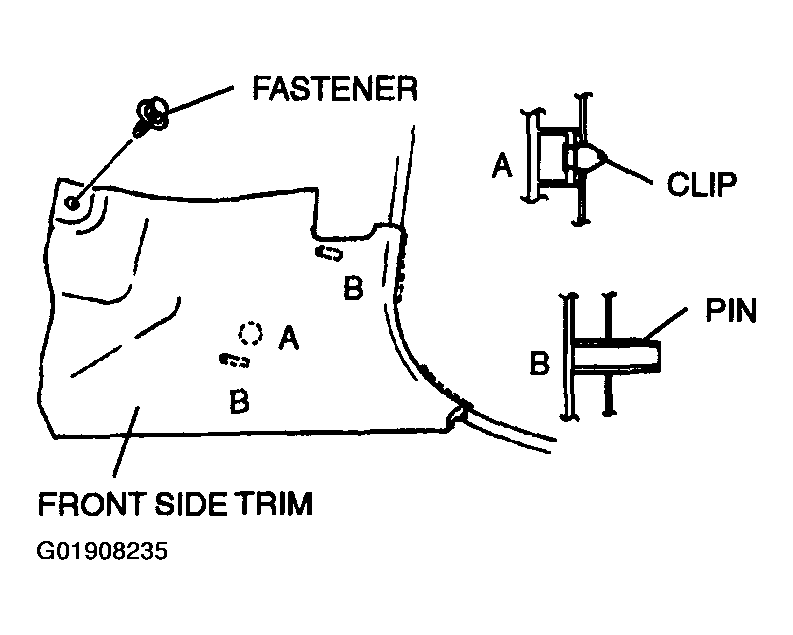

    Fig 1: Removing/Installing Front Side Trim
    G01908235Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
