Front Header Trim Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the striker.
  3. Remove the sunvisor.
  4. Remove the interior light. (See INTERIOR LIGHT REMOVAL/INSTALLATION .)
  5. Pull the front header trim toward you, then disengage the clips A, B and pin C from the body.

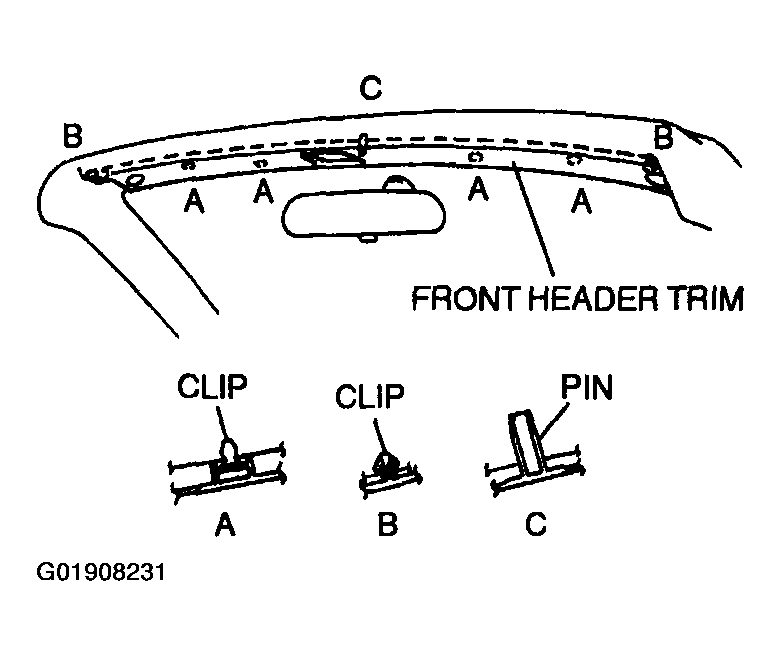

    Fig 1: Removing/Installing Front Header Trim
    G01908231Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
