Console Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the figure.

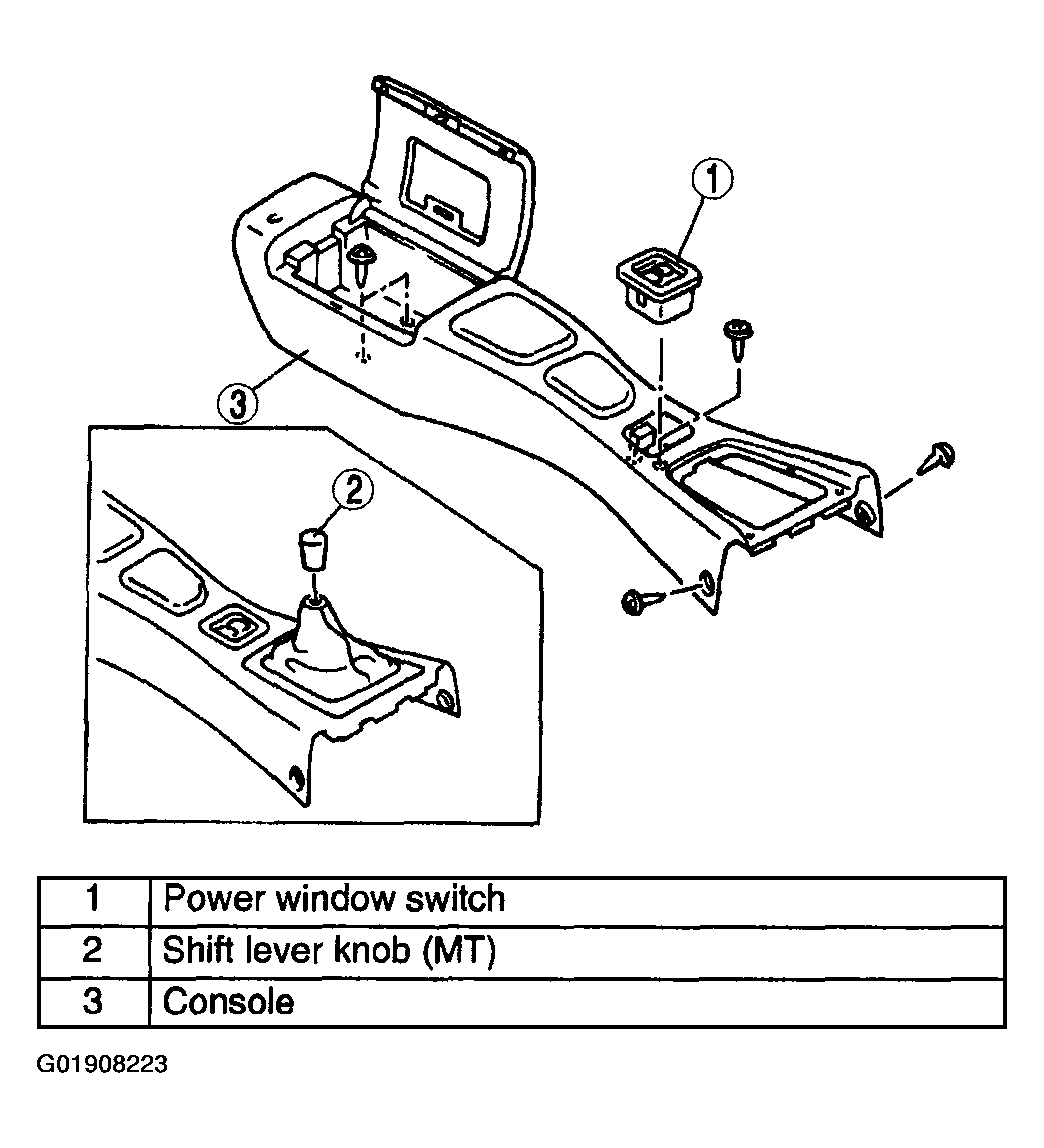

    Fig 1: Removing/Installing Console
    G01908223Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
