Column Cover Removal/Installation

  1. Remove the screws, then remove the column cover.

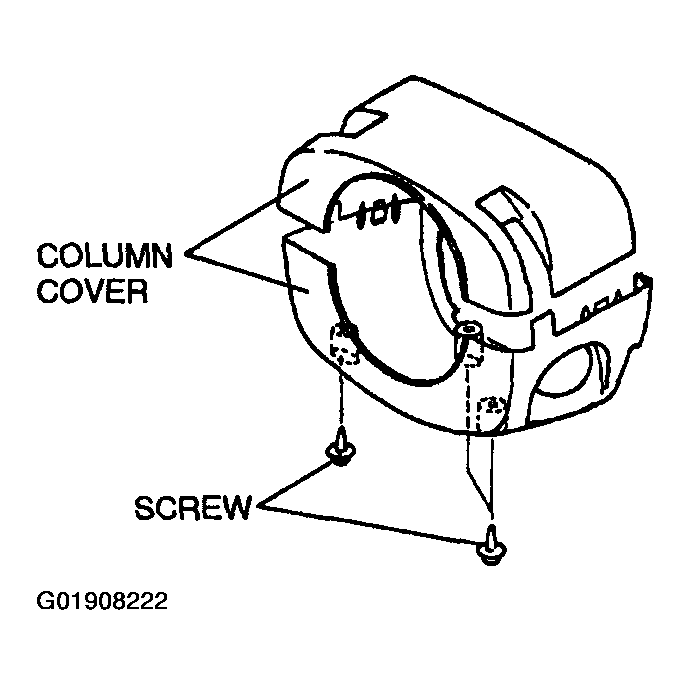

    Fig 1: Removing/Installing Column Cover
    G01908222Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
