Rear Resistor Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the rear side trim (RH). (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the figures.

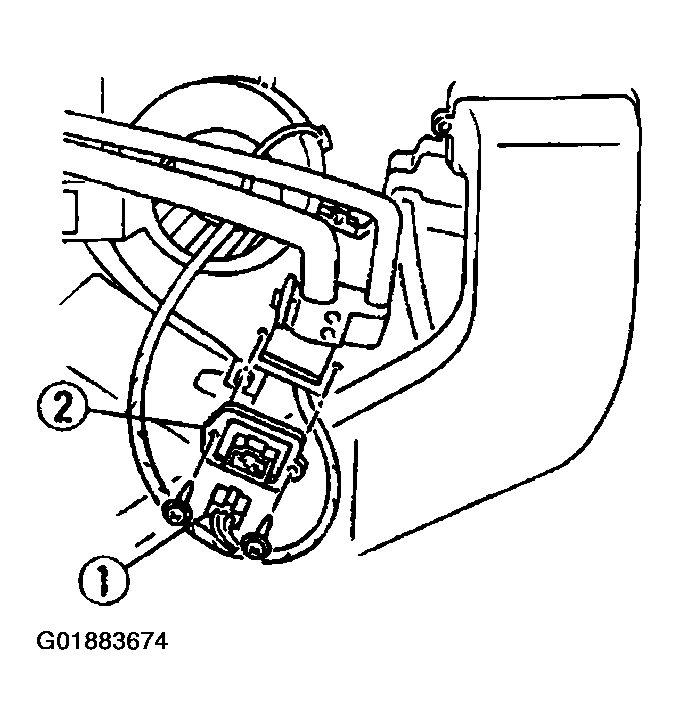

    Fig 1: Removing Rear Resistor
    G01883674Courtesy of MAZDA MOTORS CORP.

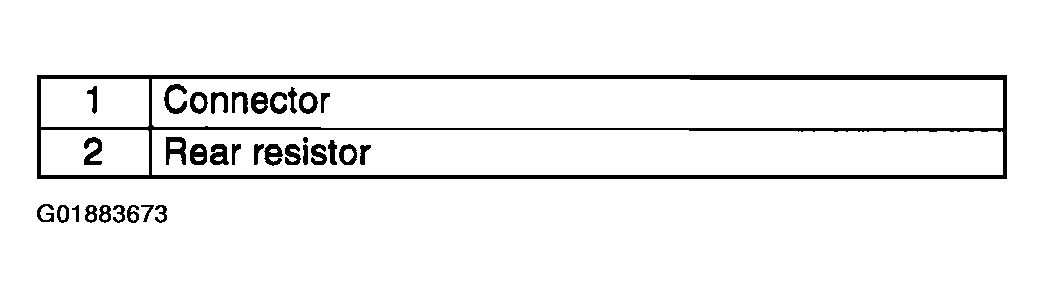

    Fig 2: Rear Resistor Removal Sequence
    G01883673Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
