Rear Resistor Inspection

  1. Inspect the resistance between the rear resistor terminals using an ohmmeter.
    • If not as specified, replace the rear resistor.

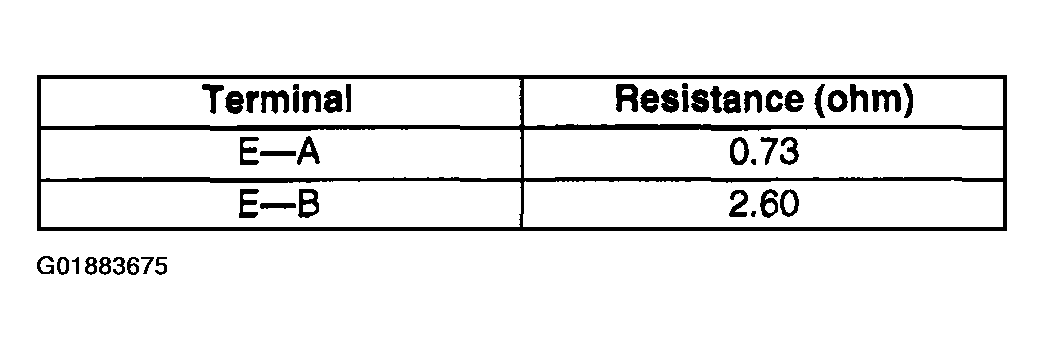

      Fig 1: Rear Resistor Resistance Specifications
      G01883675Courtesy of MAZDA MOTORS CORP.

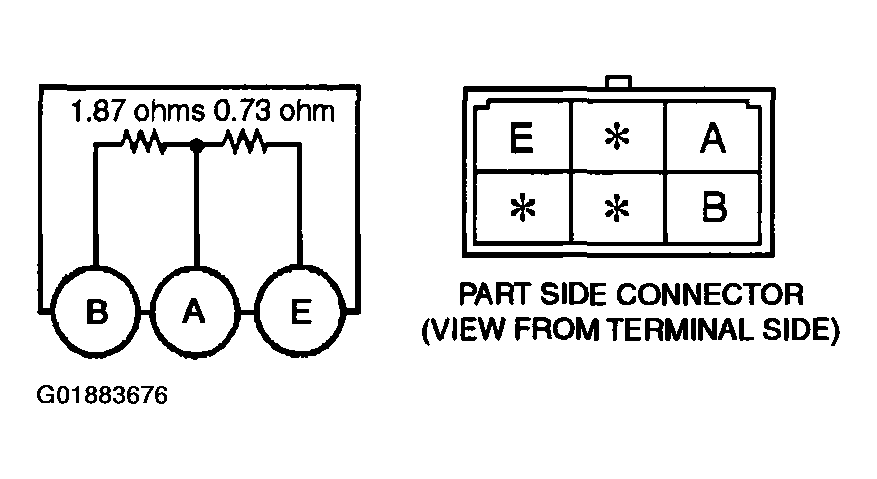

      Fig 2: Identifying Rear Resistor Circuit & Connector Terminals
      G01883676Courtesy of MAZDA MOTORS CORP.
