Rear Main Fan Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the center upper panel. (See METER HOOD REMOVAL/INSTALLATION (+)
  3. Remove in the order indicated in the figures.

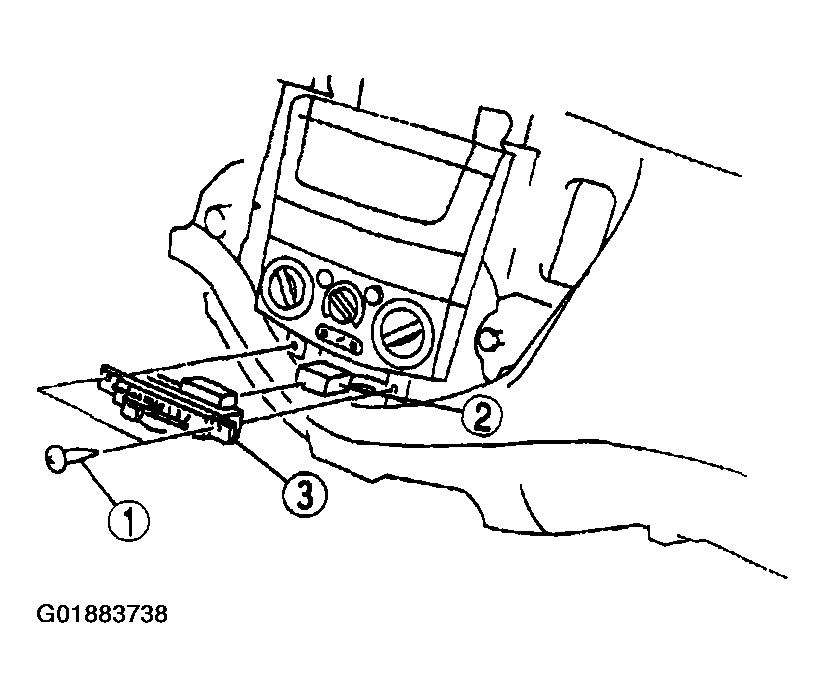

    Fig 1: Removing Rear Main Fan Switch
    G01883738Courtesy of MAZDA MOTORS CORP.

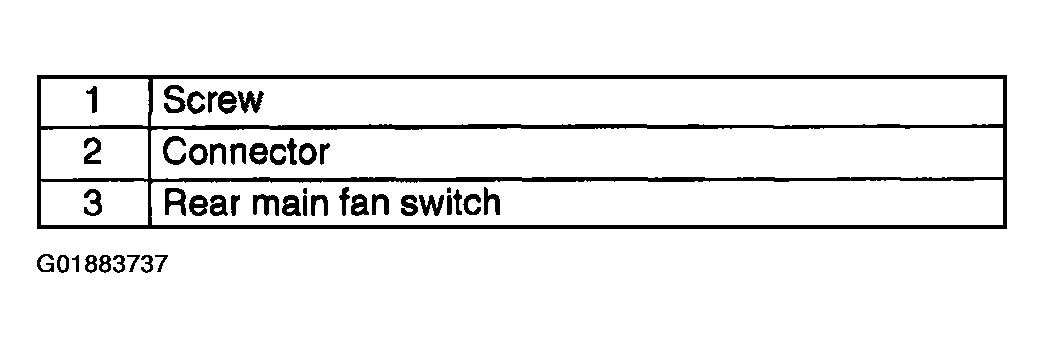

    Fig 2: Rear Main Fan Switch Removal Sequence
    G01883737Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
