Rear Main Fan Switch Inspection

  1. Inspect for continuity between the rear main fan switch terminals using an ohmmeter.
    • If not as specified, replace the rear main fan switch. (See REAR MAIN FAN SWITCH DISASSEMBLY/ASSEMBLY  (+)

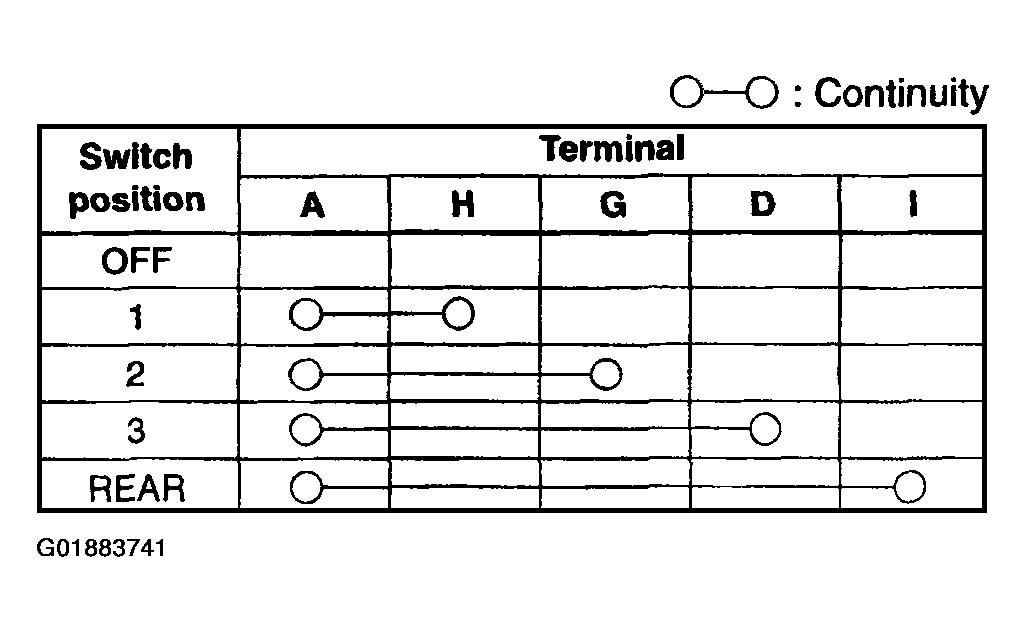

      Fig 1: Rear Main Fan Switch Position/Continuity Table
      G01883741Courtesy of MAZDA MOTORS CORP.
      Fig 2: Identifying Rear Main Fan Switch Circuit & Connector Terminals
      G01883742Courtesy of MAZDA MOTORS CORP.
