Rear Fan Switch Inspection

  1. Inspect for continuity between the rear fan switch terminals using an ohmmeter.
    • If not as specified, replace the rear fan switch.

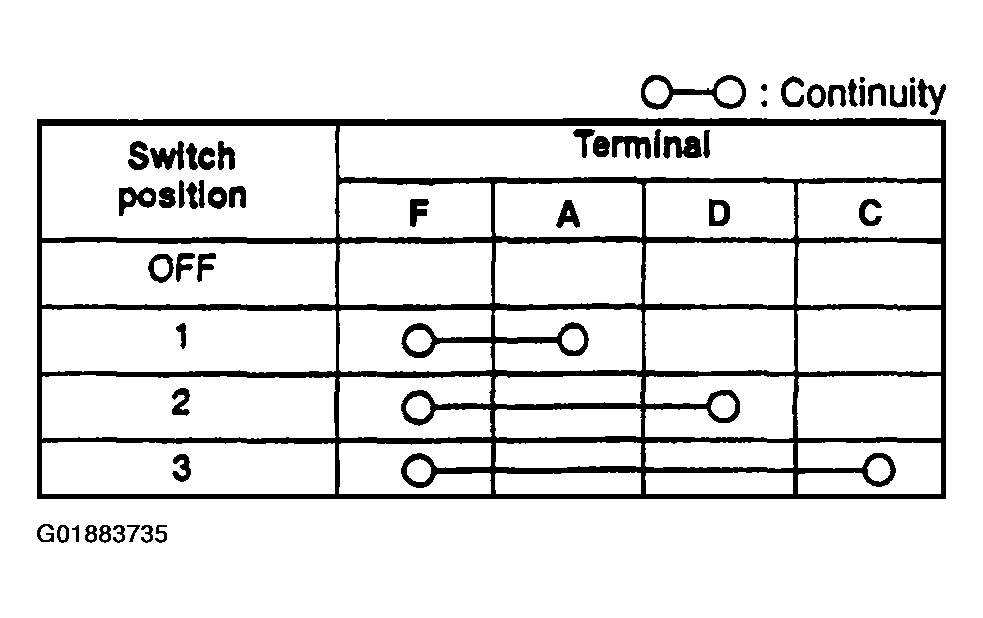

      Fig 1: Rear Fan Switch Position/Continuity Table
      G01883735Courtesy of MAZDA MOTORS CORP.
      Fig 2: Identifying Rear Fan Switch Circuit & Connector Terminals
      G01883736Courtesy of MAZDA MOTORS CORP.
