Bolt Disassembly Note

  1. Remove the bolt using the SST.

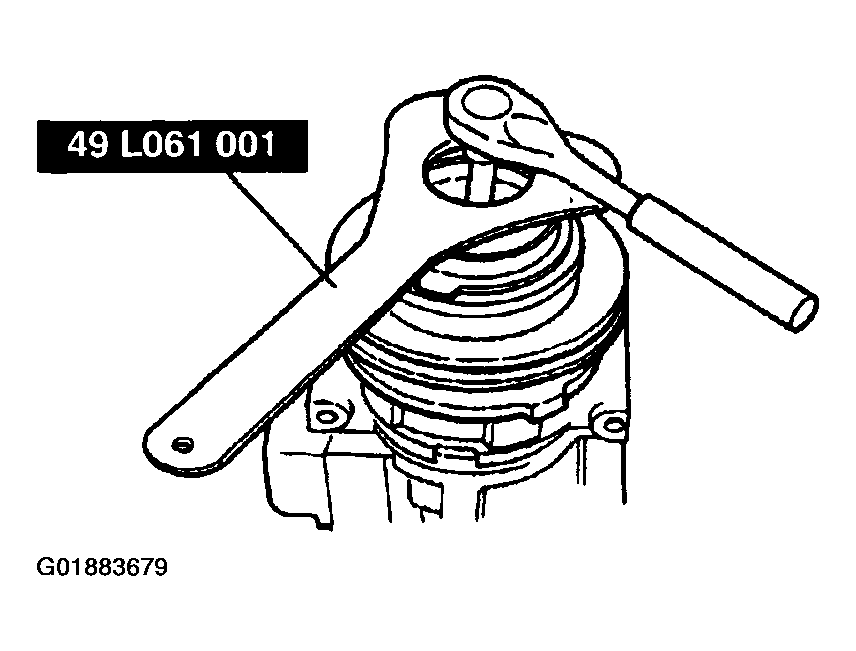

    Fig 1: Removing Bolt Using SST
    G01883679Courtesy of MAZDA MOTORS CORP.
