Front Blower Motor Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the under cover.
  3. Remove in the order indicated in the figures.

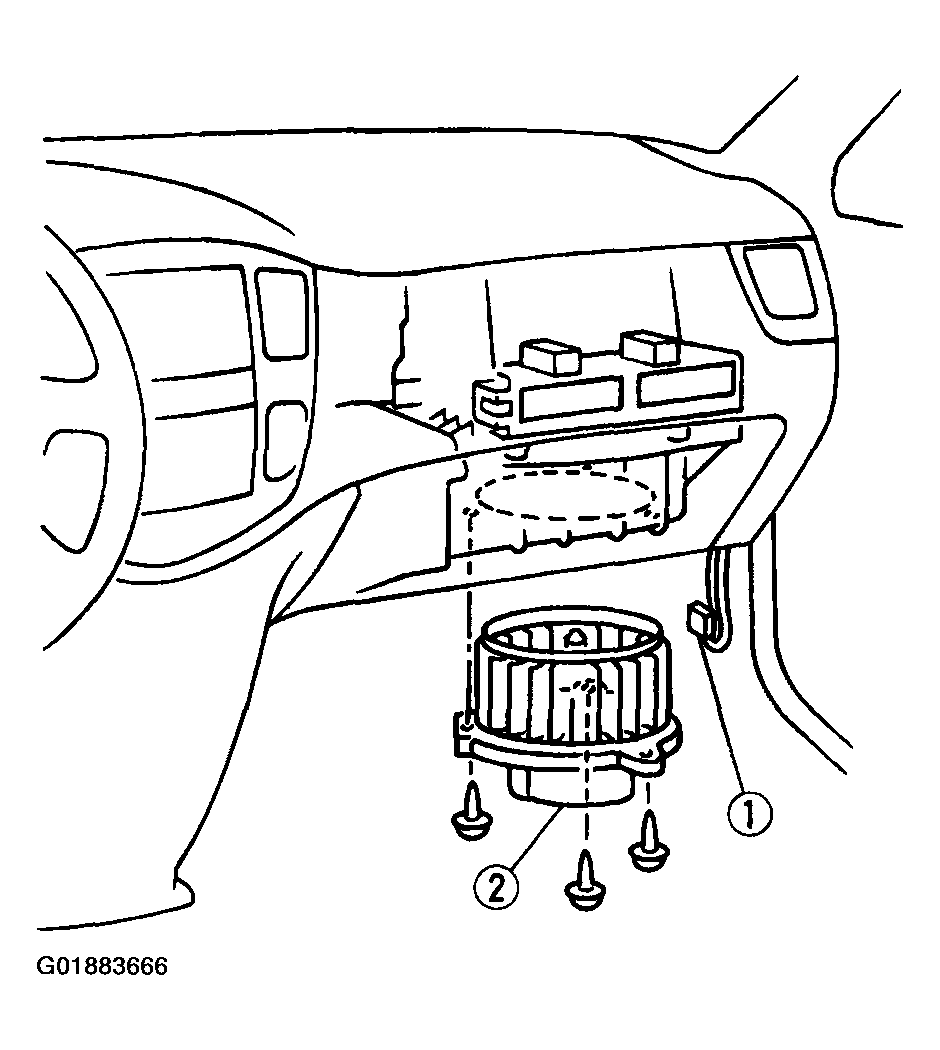

    Fig 1: Removing Front Blower Motor
    G01883666Courtesy of MAZDA MOTORS CORP.

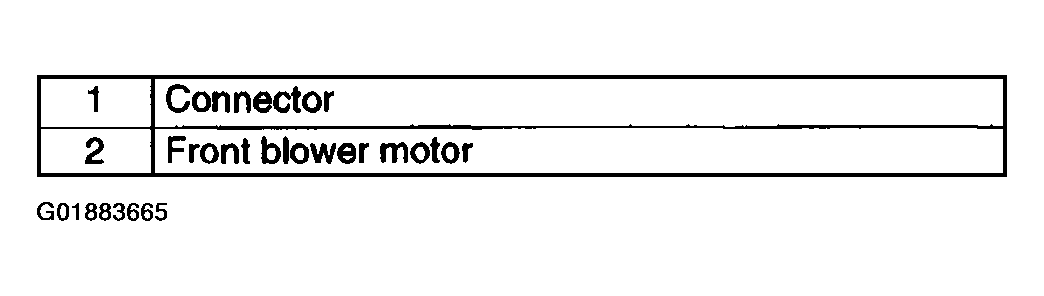

    Fig 2: Front Blower Motor Removal Sequence
    G01883665Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
