Air Intake Actuator Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the figures.

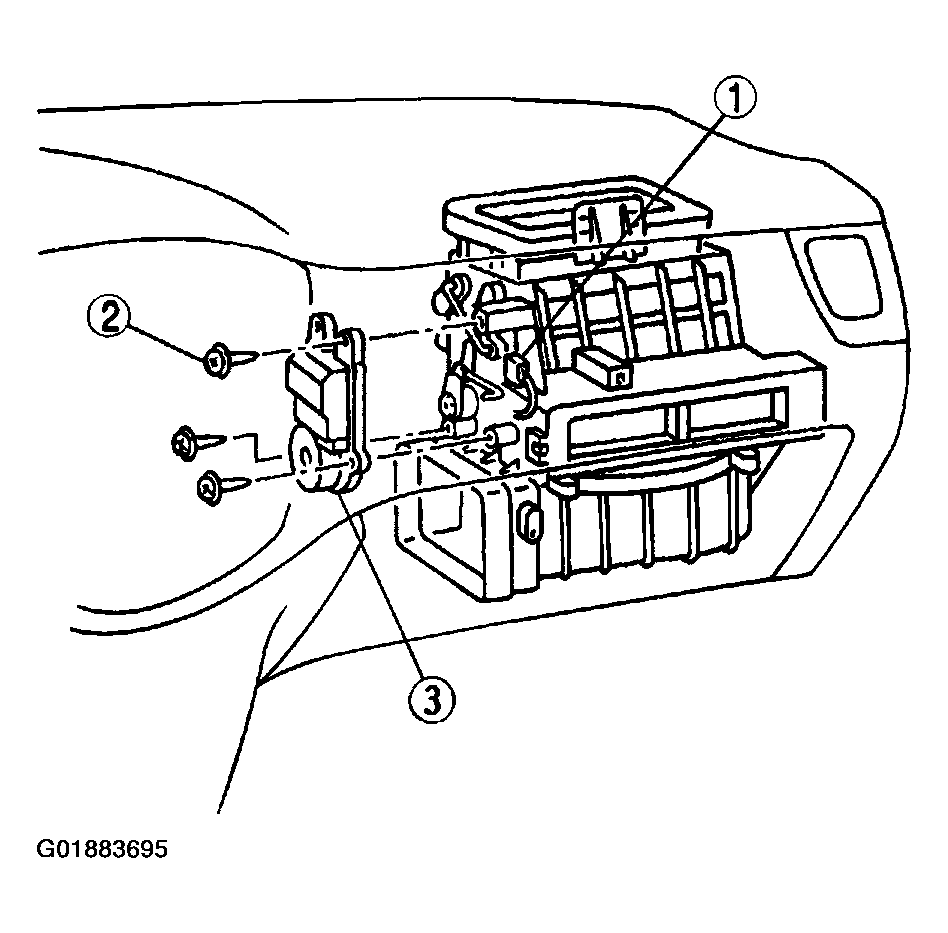

    Fig 1: Removing Air Intake Actuator
    G01883695Courtesy of MAZDA MOTORS CORP.

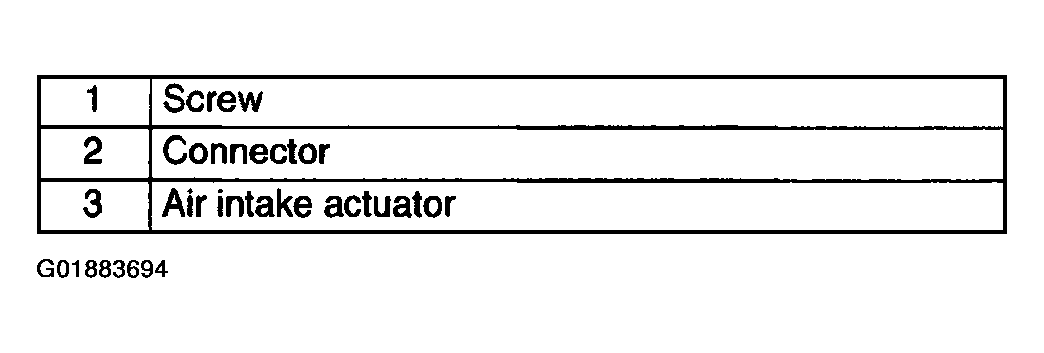

    Fig 2: Air Intake Actuator Removal Sequence
    G01883694Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
