Long Slider And Adapter Removal/Installation

  1. Remove the second-row seat. (See SECOND-ROW SEAT REMOVAL  .) (See SECOND-ROW SEAT INSTALLATION  .)
  2. Remove the front floor covering. (See FRONT FLOOR COVERING REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the figure below.
  4. Install in the reverse order of removal.

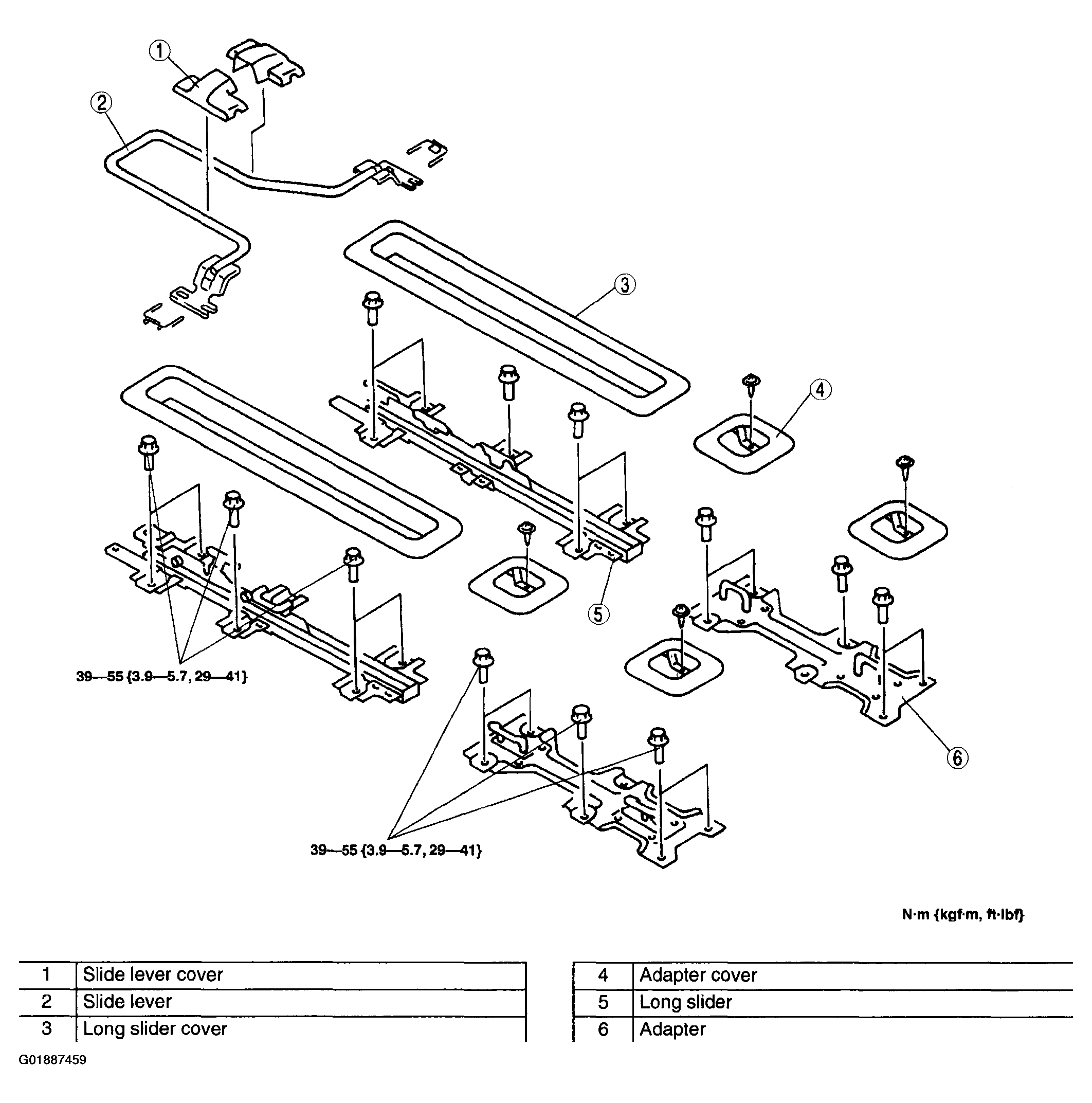

    Fig 1: Exploded View Of Long Slider And Adapter
    G01887459Courtesy of MAZDA MOTORS CORP.
