Symptom Troubleshooting [Keyless Entry System]
>>
Keyless Entry System On-Board Diagnosis
>>
On-board Diagnostic Function
On-board Diagnostic Function

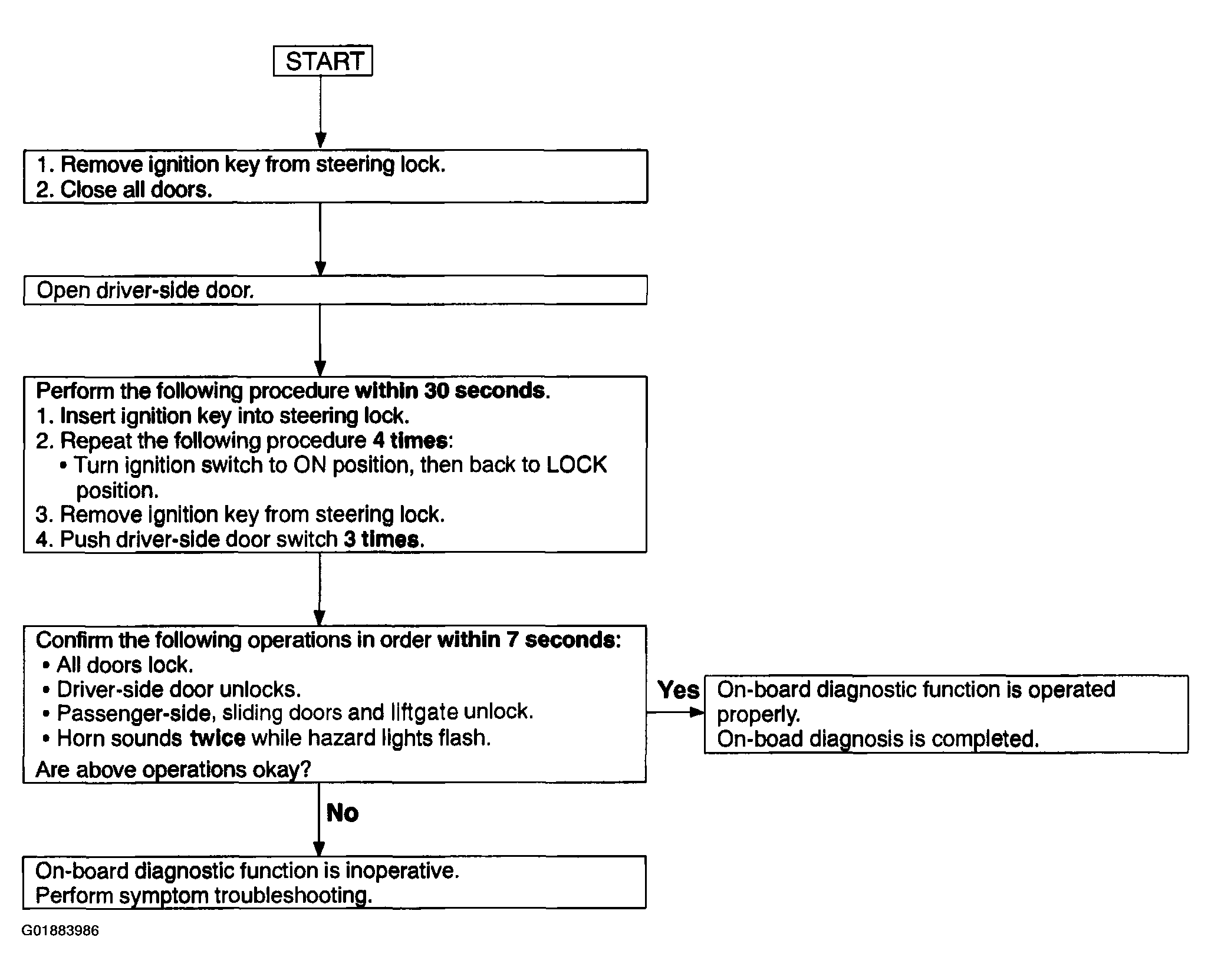

Fig 1: Keyless Entry System On-Board Diagnosis Function Chart
Courtesy of MAZDA MOTORS CORP.
TROUBLESHOOTING CODES
TROUBLESHOOTING CODES
DESCRIPTION
NO. 1
ONE OR MORE ON-BOARD DIAGNOSTIC FUNCTIONS INOPERATIVE
NO. 2
ALL ON-BOARD DIAGNOSTIC FUNCTIONS INOPERATIVE
NO. 3
TRANSMITTER ID CODE CANNOT BE REPROGRAMMED
