Symptom Troubleshooting - Automatic Transaxle
>>
Automatic Transaxle Symptom Troubleshooting
>>
Diagnostic Index
Diagnostic Index
Use the chart below to verify the symptoms of the trouble in order to diagnose the appropriate area.

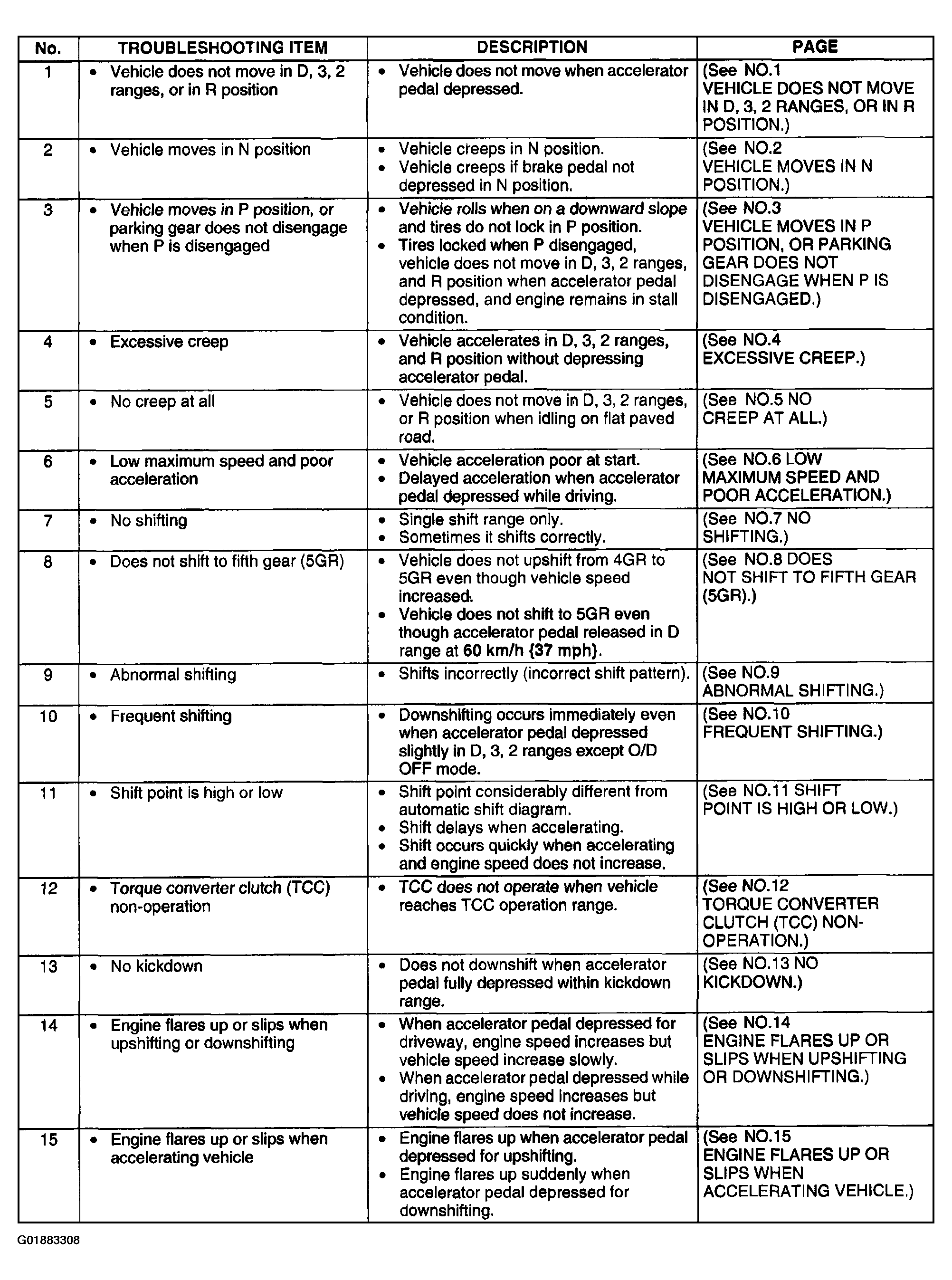

Fig 1: Automatic Transaxle Troubleshooting Symptoms Chart (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

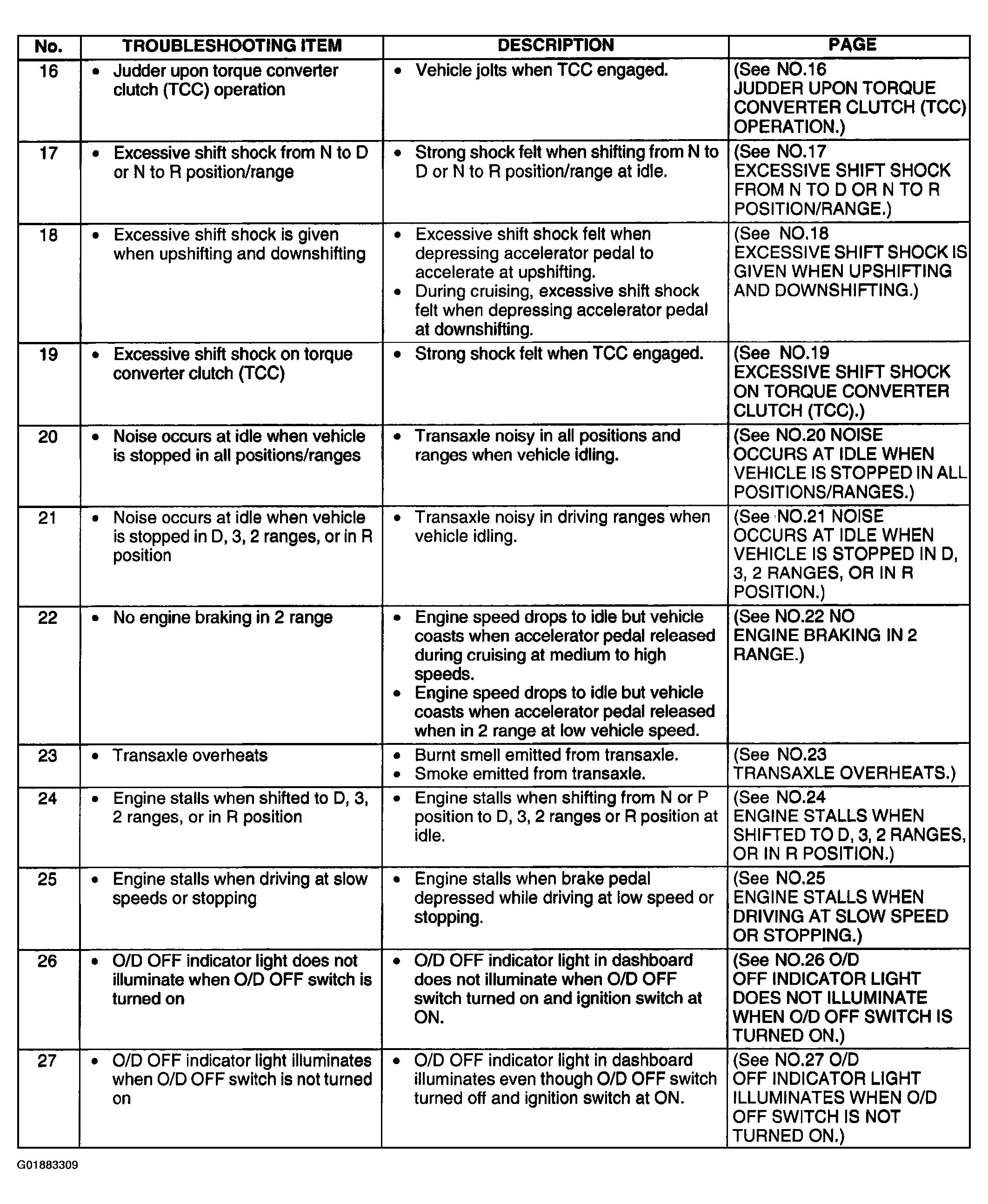

Fig 2: Automatic Transaxle Troubleshooting Symptoms Chart (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
