On-Board Diagnostic - Automatic Transmission
>>
DTC P0791: Intermediate Sensor Circuit Malfunction (Open/Short)
>>
Notes
DTC P0791: Intermediate Sensor Circuit Malfunction (Open/Short): Notes

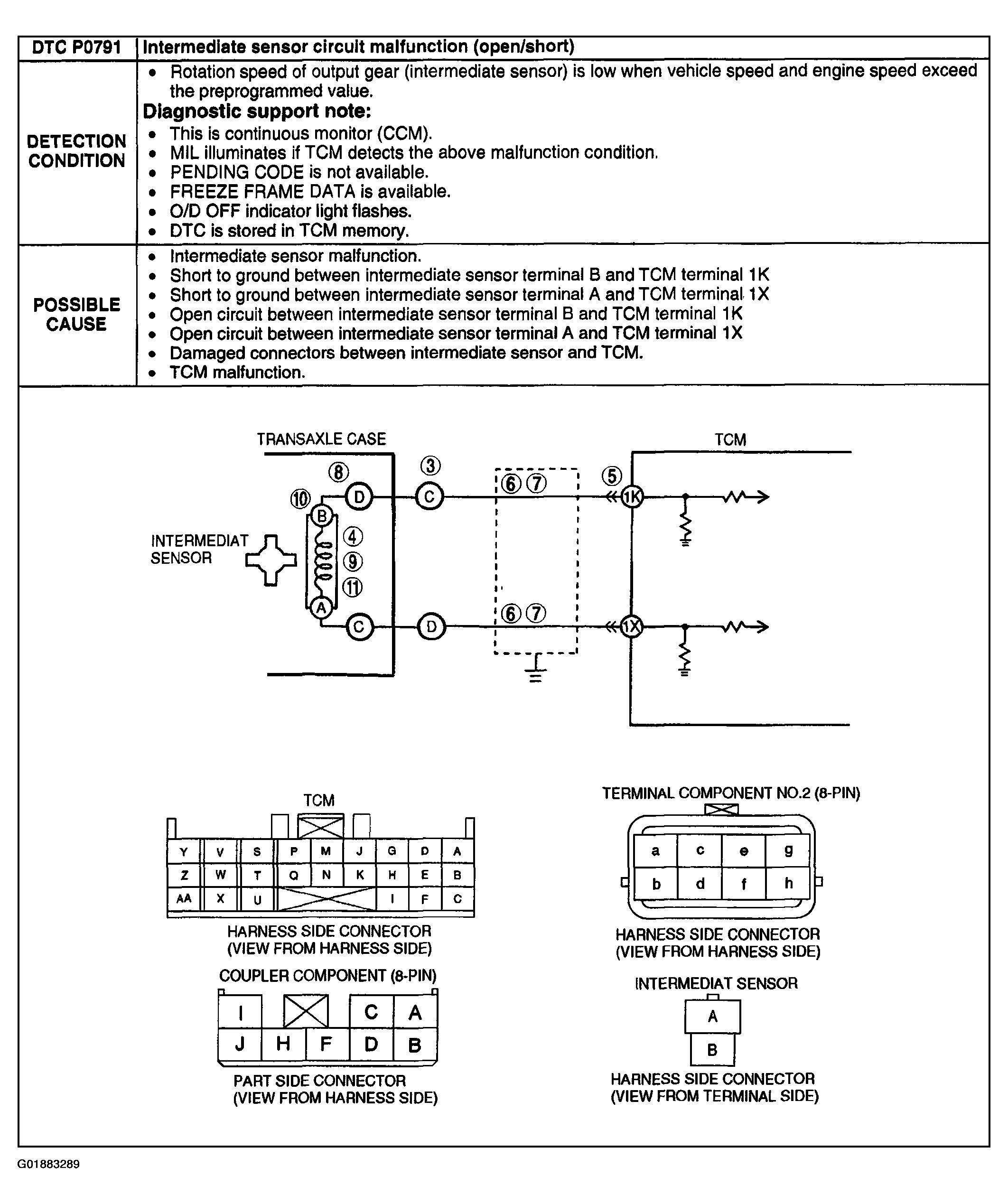

Fig 1: DTC P0791 - Detection Conditions & Possible Causes
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
