Automatic Transaxle - Overhaul [Ja5EL]
>>
Transmission/Transaxle SST
>>
Service Tools
Service Tools

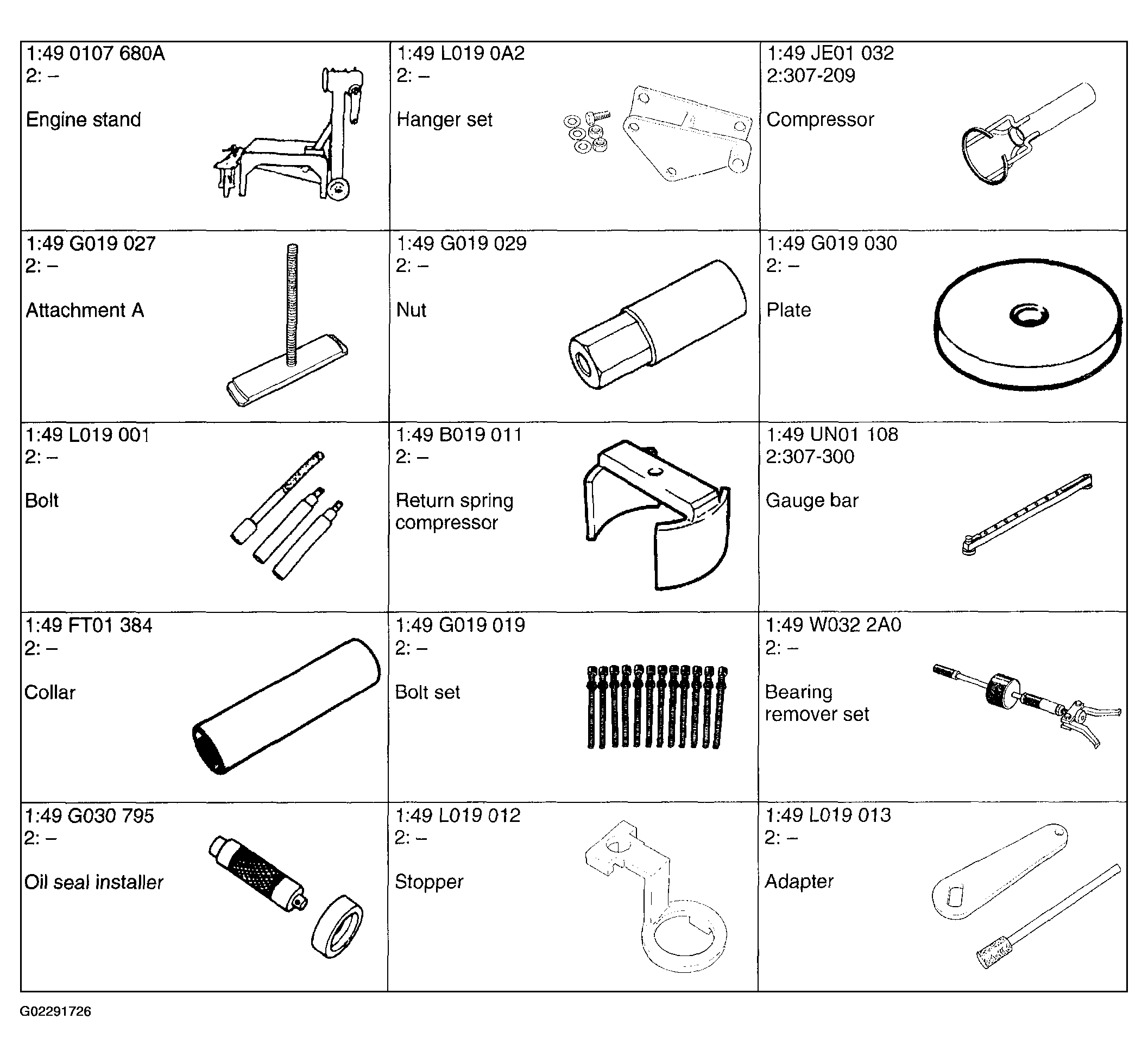

Fig 1: SST Identification (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

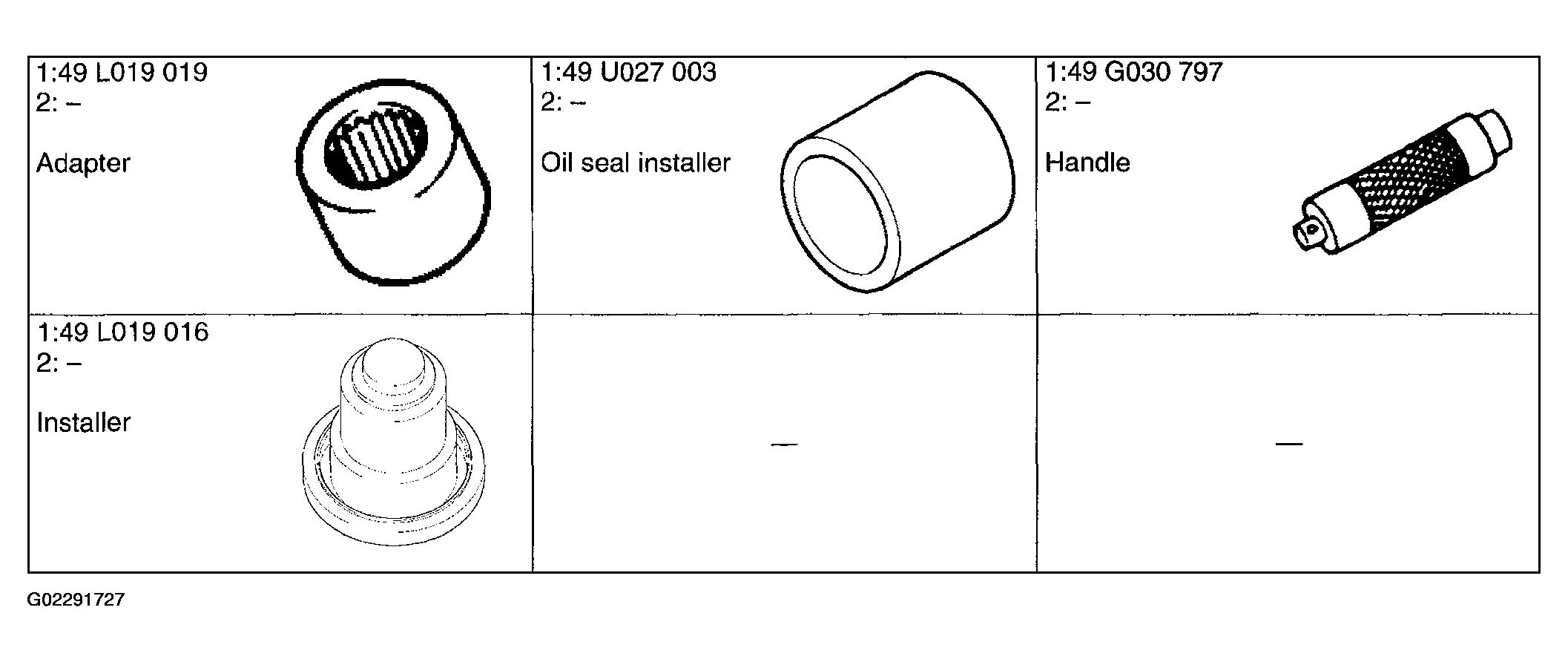

Fig 2: SST Identification (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
