Direct Clutch Disassembly: Notes

  1. Disassemble in the order indicated in the figure.

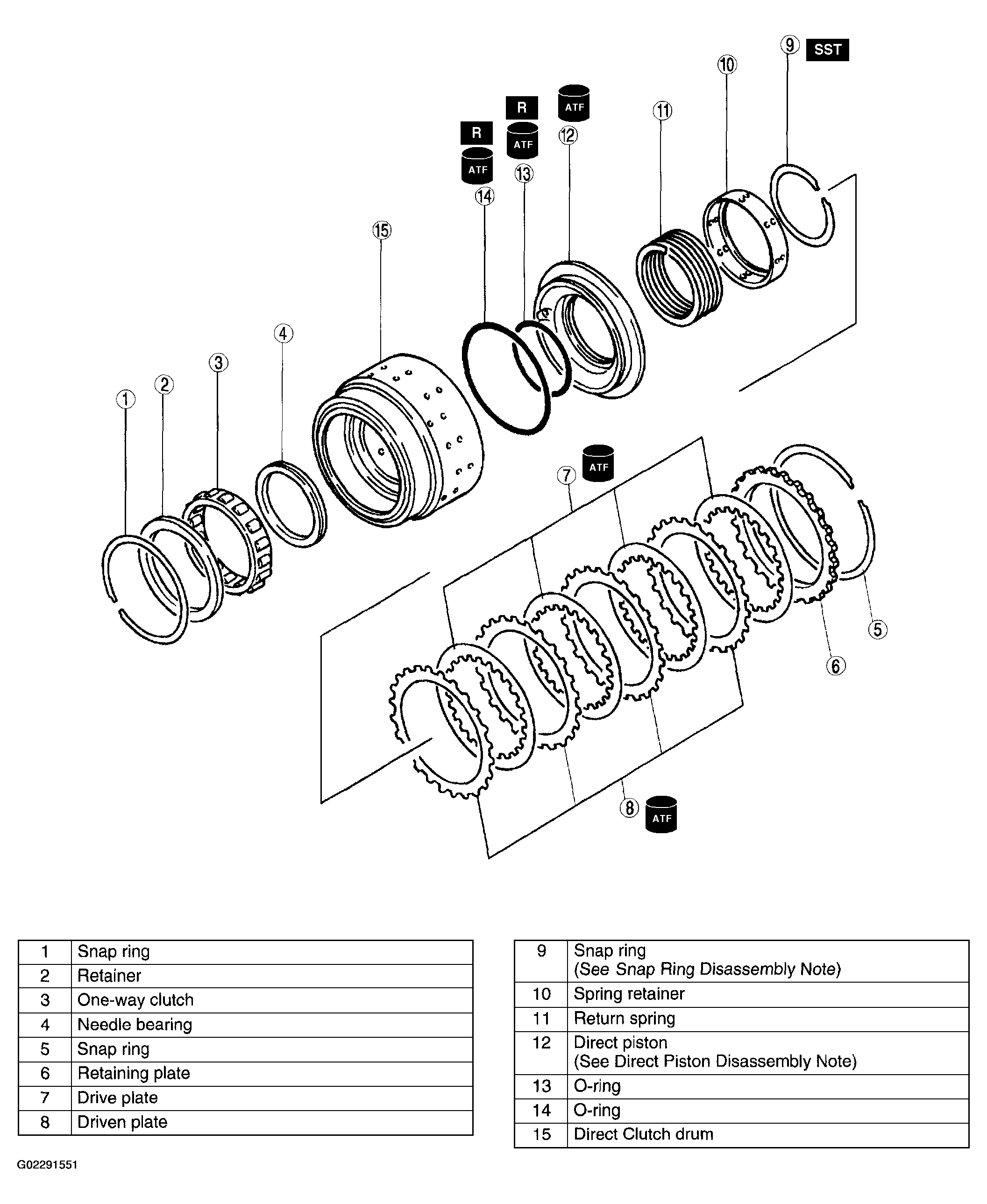

    Fig 1: Disassembling Direct Clutch
    G02291551Courtesy of MAZDA MOTORS CORP.
