Direct Piston Disassembly Note

  1. Assemble the clutch drum to the transaxle case.
    2. WARNING: Using compressed air can cause dirt and other particles to fly out, causing injury to the eyes. Wear protective eye wear whenever using compressed air.
    CAUTION: Applying compressed air to the assembled clutch pack for longer than 3 seconds at a time will damage the seal. Do not apply compressed air for more than the aforementioned time when testing the system.

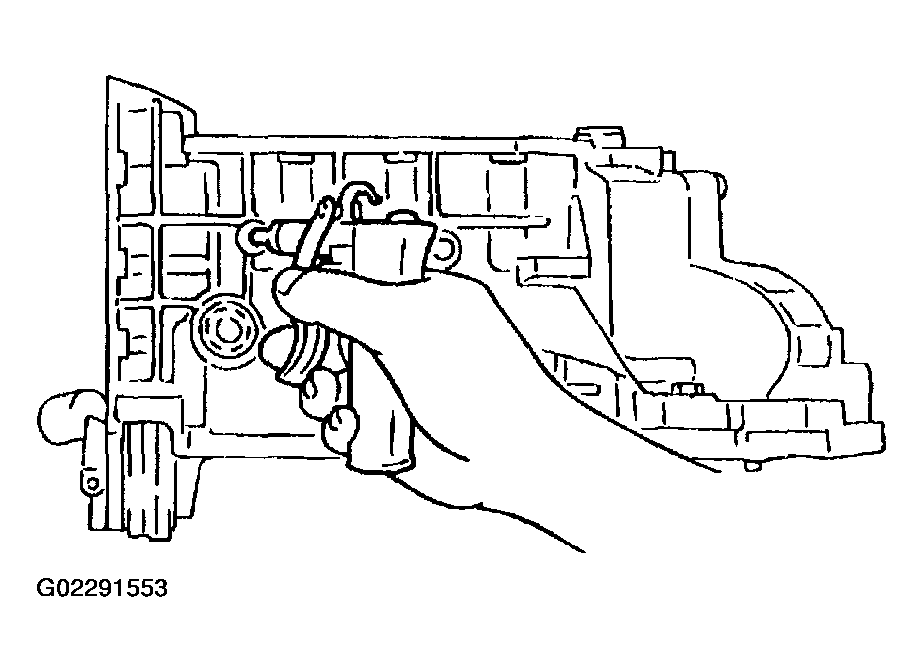

    Fig 1: Removing Direct Piston
    G02291553Courtesy of MAZDA MOTORS CORP.
  2. Remove the direct piston by applying compressed air through the fluid passage.
  3. Remove the O-ring from piston.
