Automatic Transaxle - Overhaul [Ja5EL]
>>
Control Valve Description
>>
Control Valve Component Location
Control Valve Component Location

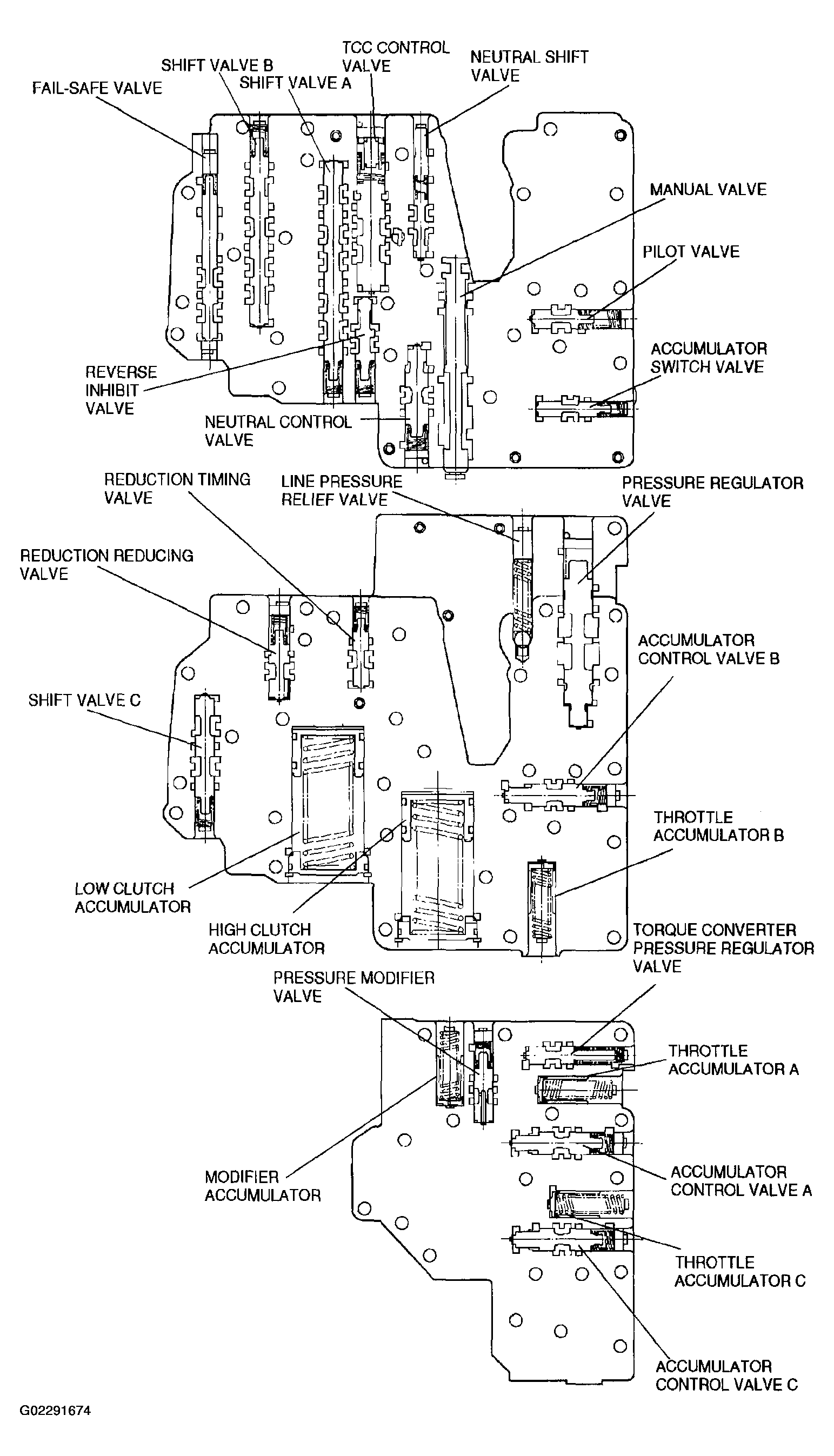

Fig 1: Identifying Control Valve Component Locations
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
