Automatic Transaxle Specifications
Automatic Transaxle Specifications

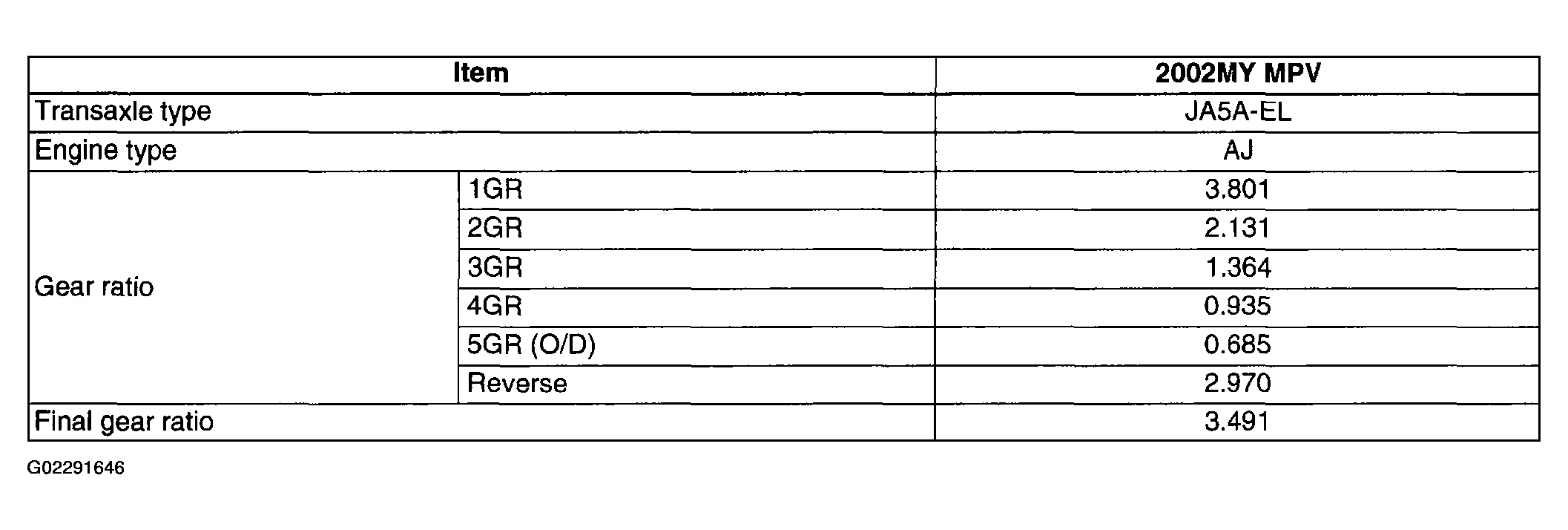

Fig 1: Identifying Gear Ratios
Courtesy of MAZDA MOTORS CORP.

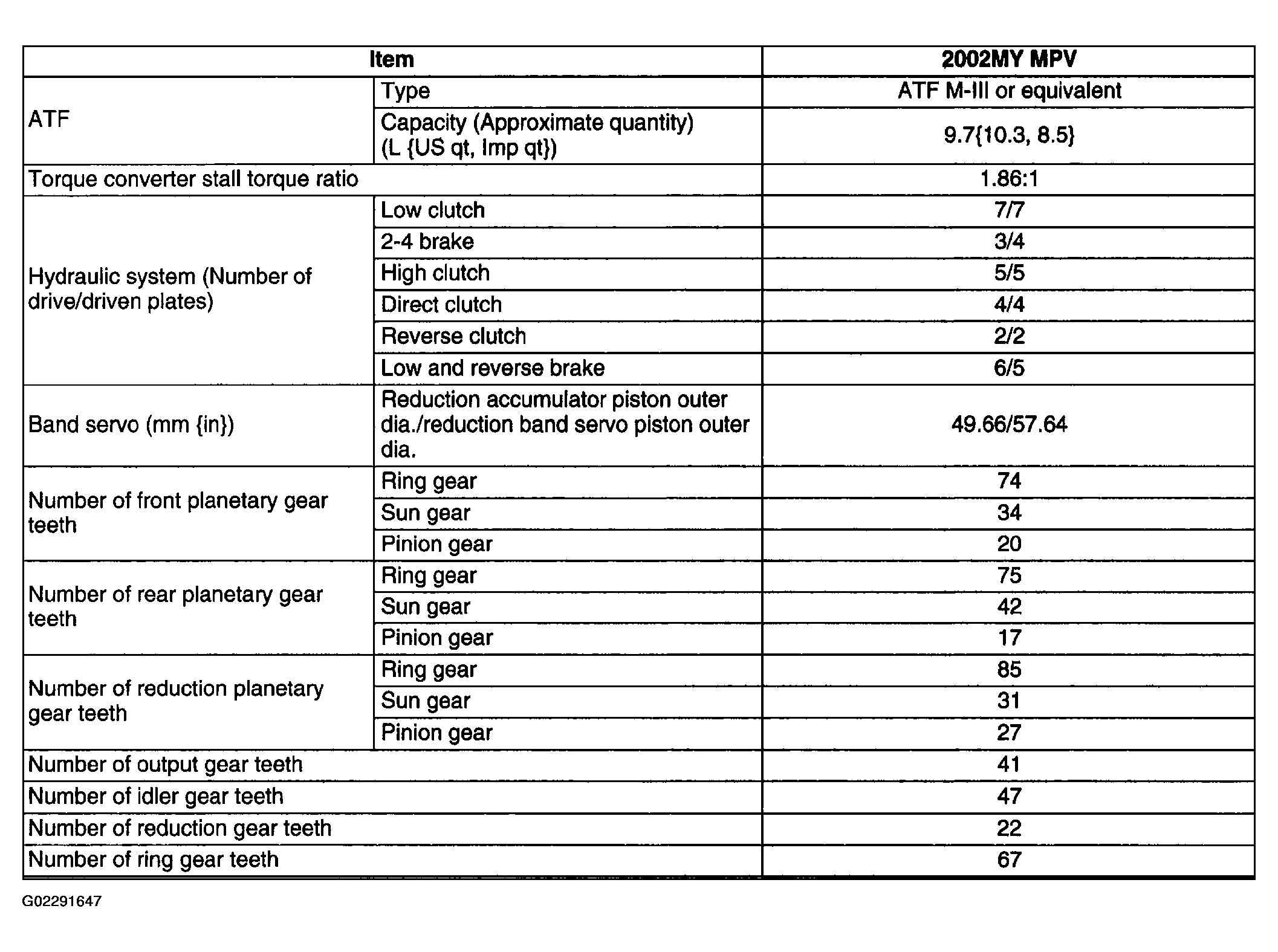

Fig 2: Identifying Automatic Transaxle Specifications
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
